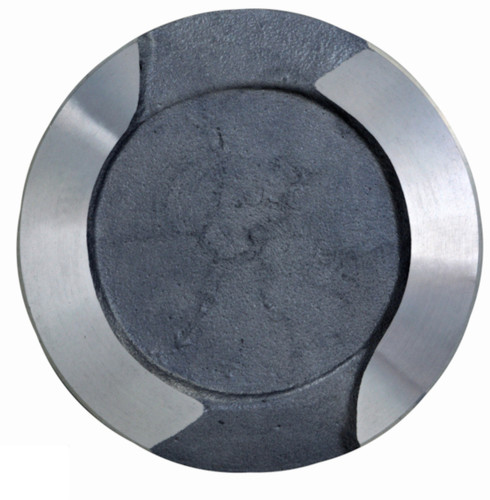

Enginetech Piston Set - Part Number P1538(8)

\n

Part Interchange:

Interchanges with Silvolite 1160 and Fed. Mogul 427P.

\n

Compatibility Chart

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Category	Make	Model	User Engine	Year Range	Notes
Car	FORD		6.6L / 400 OHV V8 16V "S" 4.000" Bore 71-79	71-79	Dish top. 1.630 CH. Use R40058 or M40058 rings.
TRUCK, VAN, SUV	FORD		6.6L / 400 OHV V8 16V "S,Z" 4.000" Bore 77-82	77-82	Dish top. 1.630 CH. Use R40058 or M40058 rings.

\n
\n

Piston Attributes

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Attribute	Value
Top Ring Size	5/64
Second Ring Size	5/64
Oil Ring Size	3/16
Pin Diameter	0.9753
Bore Diameter (At Standard)	4.000in. / 101.60mm
Alloy	Standard
Clearance	0.0017
Compression Height	1.630
Crown	7
Measuring Height	0.900
Nominal Compression Ratio	7.9:1
Pin Type	P
Recess Depth	0.115

\n

Features:

\n

\n
• Compensates for oversized bores and head/deck milling from 0.010" to 0.020".
\n
• All Enginetech pistons contain piston pins and piston pin clips where required.
\n
• Manufactured with state-of-the-art materials to match OE requirements.
\n
• Treatments such as skirt coatings, anodized heads, and NI-resist inserts are used as required.
\n
• Offers cast aluminum, hypereutectic, and forged applications.
