Enginetech Piston Set - Part Number P1593(4)

\n

Part Interchange:

Interchanges with Silvolite 2228 and Fed. Mogul 525P.

\n

Compatibility:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Category	Make	Model	User Engine	Year Range	Notes

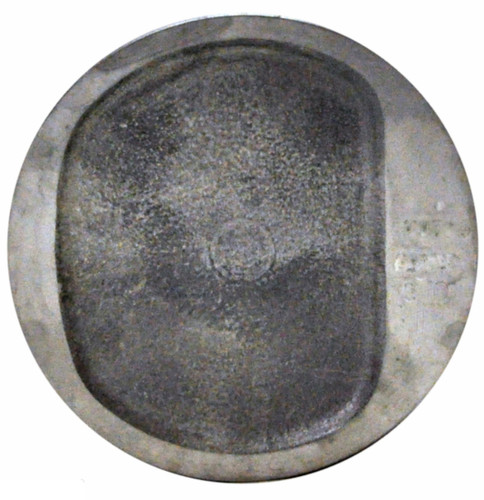

Car	AMC		2.5L / 150 OHV L4 8V "H,U,Z" AMC 3.875" Bore 83-89	83-89	"D" shaped dish top. 1.581" CH. Use R38854 or C38854 rings.
TRUCK, VAN, SUV	Jeep		2.5L / 150 OHV L4 8V "E,H,P,U" AMC 3.875" Bore 83-02	83-95	"D" shaped dish top. 1.581" CH. Press fit pin. Use R38854 or C38854 rings.

\n
\n

Piston Attributes:

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Attribute	Value
Top Ring Size	5/64 in
Second Ring Size	5/64 in
Oil Ring Size	3/16 in
Pin Diameter	0.9305 in
Bore Diameter (At Standard)	3.875 in / 98.45mm
Alloy	Standard
Clearance	0.0017 in
Compression Height	1.581 in
Crown	14
Measuring Height	0.700 in
Nominal Compression Ratio	9.2:1
Pin Type	P
Recess Depth	0.100 in

\n

Features:

\n

\n
• Compensates for oversized bores and head/deck milling from 0.010" to 0.020".
\n
• All Enginetech pistons contain piston pins and piston pin clips where required.
\n
• Manufactured with state-of-the-art materials to match OE requirements.
\n
• Treatments such as skirt coatings, anodized heads, and NI-resist inserts are used as required.
\n
• We offer cast aluminum, hypereutectic, and forged applications.
\n

\n
