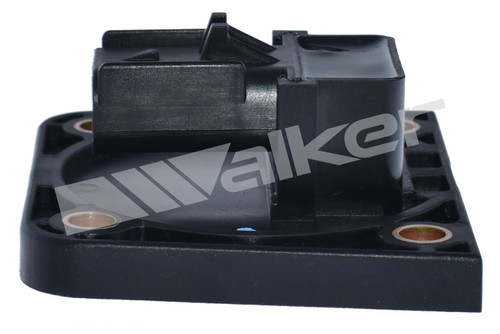

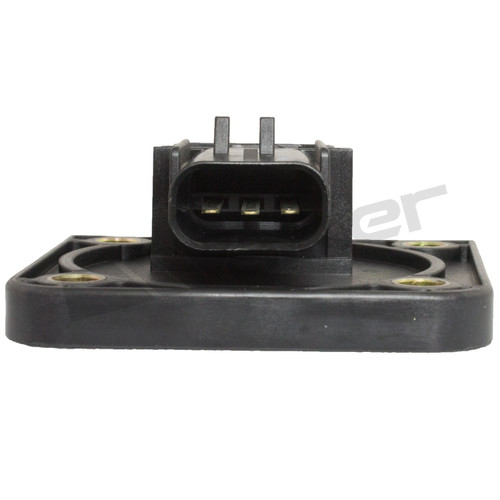

The Walker Products Engine Camshaft Position Sensor (part number 235-1040) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
Specifications:
| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Chrysler 4667745, Chrysler 4777068, Chrysler 4778796, Chrysler 4882850, Chrysler 5235378, Chrysler 5269562, Chrysler 6034887, Chrysler 04882850AC, Chrysler 4882850AA, Chrysler 4882850AC, Chrysler 4884111AA, Chrysler 5096057AA, Chrysler 5269704AB, Chrysler 5293195AA, Quinton Hazell XREV305, Motorad 1CS111, Dorman 917-723, NTK CHN3V515, NTK EC0102, NTK 81514, Echlin CSS702, Echlin CSS705, SIDAT Group 83525, Standard Import 19239, Spectra Premium S10110, KEM 147-605, Meat & Doria 87622, Tomco Products 22023, Wells SU3020, FVP 1CS111, SMP PC106K, SMP PC106KT, SMP PC146, SMP PC146T, MasterPro 2-96079, BWD CSS34, BWD CSS49, Schrader TPMS Solutions 3CCS0021, Airtex 5S1262, ACDelco 213-2380, Forecast 96079, Duralast SU3020DG, Hella 602-02, Hoffer Products 7517622, Fispa 83525, Advan-Tech 7M4, KEM 147-605, Holstein 2CAM0026, PRENCO 4E-1003, NAPA Mileage Plus CSS705SB, NAPA Mileage Plus CSS702SB, MOBILETRON CS-U014, Calderon 109-001-L7
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
