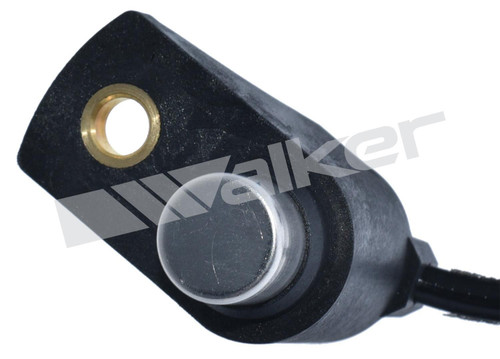

The Walker Products Engine Camshaft Position Sensor (part number 235-1042) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
Specifications:
| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Quinton Hazell XREV242, Topran 207855, Vernet CS0160, NTK 81421, NTK CHC3V422, NTK EC0095, Echlin CSS1083, Echlin CSS224, SIDAT Group 83323, ERA 550779, Opel 6238111, General Motors 09118140, Standard Import 18934, Spectra Premium S10248, Lucas Electrical SEB874, Meat & Doria 87302, Wells SU1275, SMP PC293, SMP PC413, BWD CSS130, BWD CSS1583, Airtex 5S1247, ACDelco 9118140, ACDelco 9146032, VEMO V40720368, VEMO V40-72-0368, Hoffer Products 7517302, Fispa 83.323, Fispa 83323, Werner Metzger GmbH 0903077, Facet 9.0286, Cadillac 9118140, Cadillac 9146032, FAE 79229, Magneti Marelli 064847121010, Magneti Marelli SAC021, Holstein 2CAM0171, Bosch 0232103025, Bosch 0 232 103 025, MOBILETRON CS-U034
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
