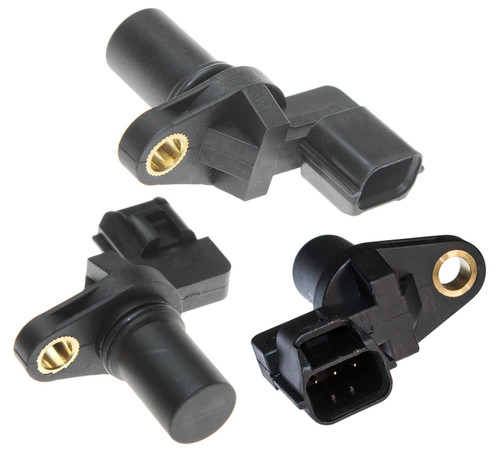

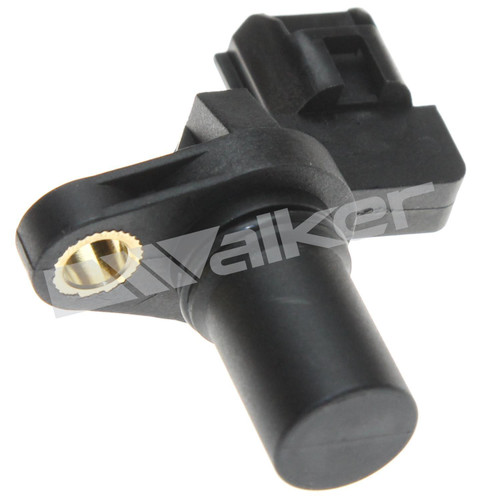

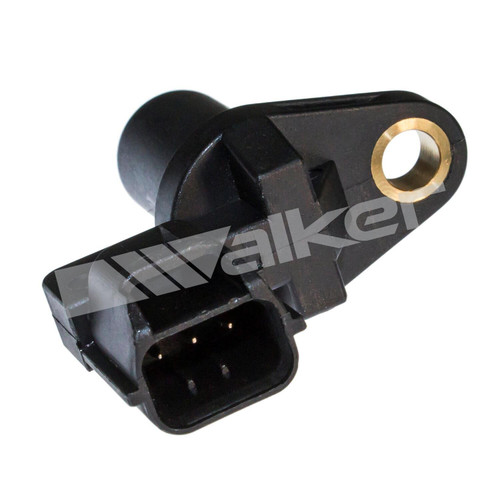

The Walker Products Engine Camshaft Position Sensor (part number 235-1051) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
Specifications:
| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Quinton Hazell XREV220, Motorad 1CS144, Dorman 907-712, NTK 81068, NTK CHN3V069, NTK EC0144, Cont Machines 3931038050, Echlin CSS859, SIDAT Group 83347, ERA 550329, ERA 550525, ERA 551008, ERA 550329A, ERA 551008A, Standard Import 19001, Spectra Premium S10042, KEM 147-792, Lucas Electrical SEB1004, Tomco Products 22303, Meat & Doria 87402, Wells SU4976, FVP 1CS144, SMP PC373, SMP PC373T, BWD CSS1564, Valeo 253813, Beck/Arnley 180-0350, Airtex 5S1301, Volvo 30874179, ACDelco 213-2459, Febi-Bilstein 32081, Febi-Bilstein 32575, Ashuki C44010, Forecast 96038, Hella 602-05, Hella 6PU009121801, Hoffer Products 7517402, Fispa 83347, Delphi SS10071, Facet 9.0335, Advan-Tech 4R4, FAE 79365, BluePrint Engines ADC47204, BluePrint Engines ADG07211, BluePrint Engines ADG07232, Herth+Buss J5630309, Hitachi Astemo 138138, KEM 147-300, KEM 147-792, Holstein 2CAM0003, Holstein 2CAM0048, Holstein 2CAM0157, PRENCO 4E-1071, Mitsubishi J5T23071, Mitsubishi J5T23071A, MOBILETRON CS-K005, DENSO 196-8003, Calderon 109-068-M4
