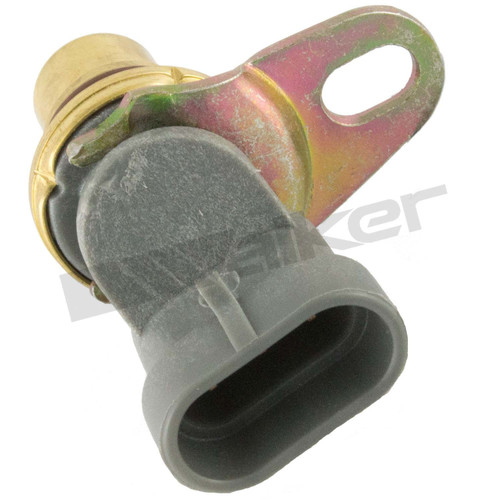

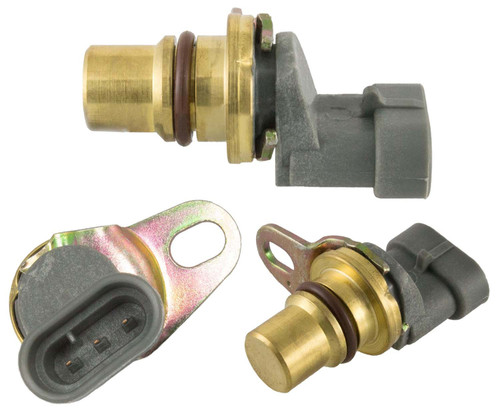

The Walker Products Engine Camshaft Position Sensor (part number 235-1076) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
Specifications:
| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Dorman 907-706, Motorad 1CS154, Echlin CSS213, NTK EC0080, SIDAT Group 833002, Opel 01238561, Opel 6238237, Opel 10456250, Opel 10456617, General Motors 10456250, General Motors 10456617, Spectra Premium S10189, KEM 147-426, Tomco Products 22019, Meat & Doria 87699, Wells SU1069, FVP 1CS154, SMP PC115, BWD CSS124, Beck/Arnley 180-0561, Airtex 5S1235, ACDelco 213-701, Duralast SU1069DG, Forecast 96005, Carquest 71-4752, Carquest 714752, Hoffer Products 7517699, Fispa 833002, Delphi SS10005, Delphi SS1000511B1, Advan-Tech 4R1, Holstein 2CAM0028, Holstein 2CAM0501, Isuzu 8104562500, Isuzu 8104566170, Isuzu 8104566600, PRENCO 4E-1056, NAPA Mileage Plus CSS213SB, MOBILETRON CS-U027, Calderon 109-009-L7, Calderon 109-009-M3
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
