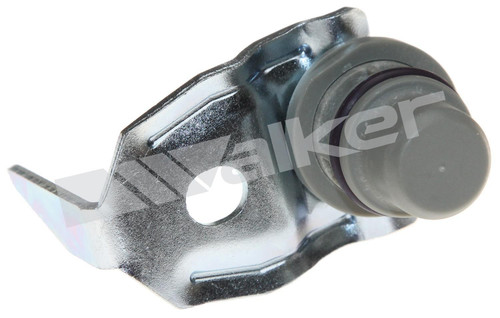

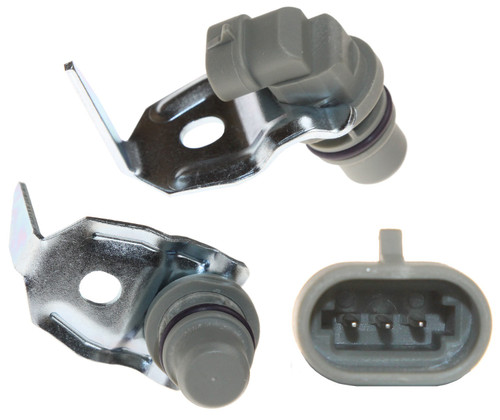

The Walker Products Engine Camshaft Position Sensor (part number 235-1110) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
Specifications:

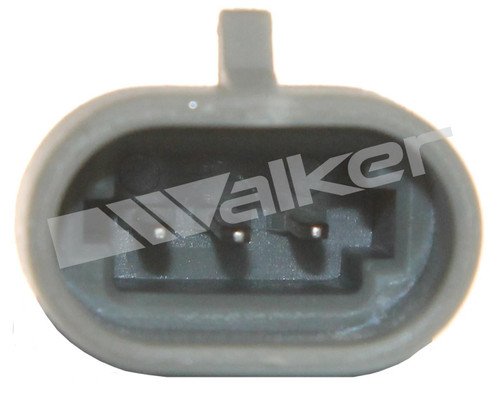

| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Forecast 96105, Duralast SU2159DG, Ford F7TZ12K073A, Ford F7TZ12K073B, Carquest 71-4623, Carquest 714623, Motorcraft WPT899, Motorad 1CS112, Echlin CSS1103, NTK EC0134, General Motors 1885781C91, General Motors 1885812C91, Advan-Tech 3D4, KEM 147-235, Holstein 2CAM0204, PRENCO 4E-1066, Wells SU2159, FVP 1CS112, SMP PC603, SMP PC603T, BWD CSS1603, International Harvester IHC 1825899C93, International Harvester IHC 1885812C91, International Harvester IHC F7TZ12K073A, International Harvester IHC F7TZ12K073B, Airtex 5S1292, ACDelco 213-4308
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm.
