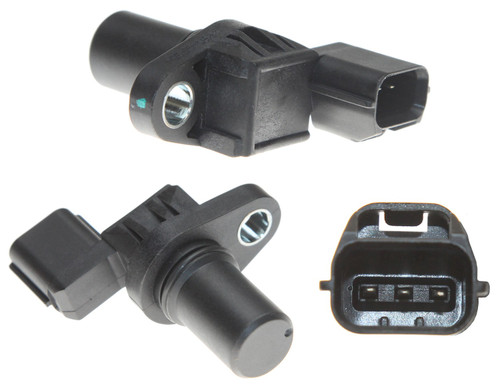

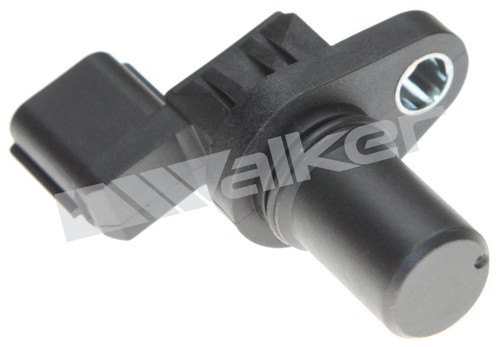

The Walker Products Engine Camshaft Position Sensor (part number 235-1122) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
Specifications:

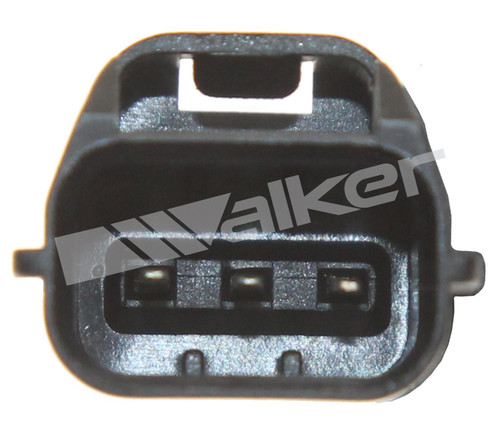

| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Quinton Hazell XREV298, Motorad 1CS157, NTK 81096, NTK CHN3V097, NTK EC0096, Echlin CSS234, SIDAT Group 83265, ERA 550347, ERA 550347A, General Motors 91173944, General Motors 91174658, General Motors 91174659, General Motors 91175909, Standard Import 19157, Spectra Premium GM25, Spectra Premium S10122, KEM 147-379, Lucas Electrical SEB1592, Meat & Doria 87545, Wells SU1272, Wells SU1355, FVP 1CS157, SMP PC226, SMP PC432, BWD CSS1540, Cardone 31-S7400, Valeo 253815, Beck/Arnley 180-0303, Beck/Arnley 180-0547, Airtex 5S1248, ACDelco 213-926, ACDelco 213-933, Ashuki K39004, Forecast 96049, Hoffer Products 7517545, Fispa 83265, Delphi SS11983, Werner Metzger GmbH 0903093, FAE 79404, BluePrint Engines ADK87202, Magneti Marelli 064847137010, Magneti Marelli SAC037, Herth+Buss J5638008, KEM 147-755, Holstein 2CAM0098, Holstein 2CAM0469, PRENCO 4E-1059, Mazda 1A0218230B, Mitsubishi J005T23191, Mitsubishi J5T23191, Mitsubishi J5T23191M1, MOBILETRON CS-J007, Suzuki 3310065D00, Suzuki 3322050G0, Suzuki 3322050G00, Suzuki 3322050G01, Suzuki 3322050G01000, Suzuki 3322050G02, Calderon 109-067-M4
