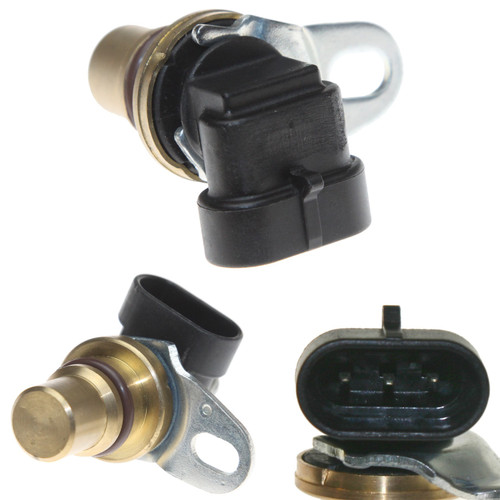

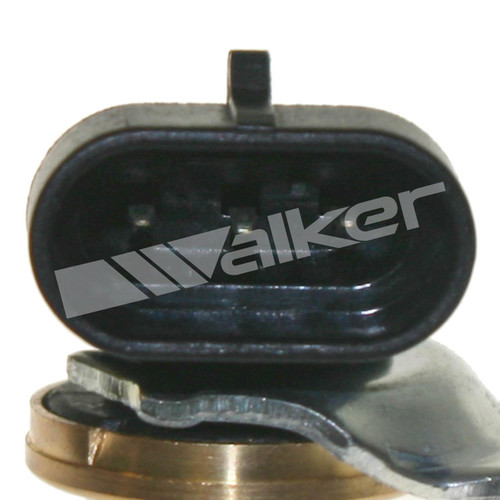

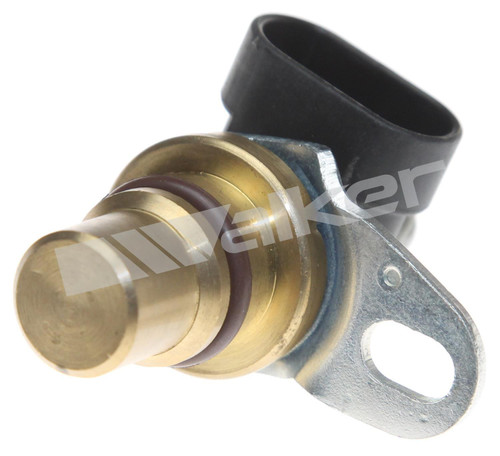

The Walker Products Engine Camshaft Position Sensor (part number 235-1324) is a direct-fit replacement part. Identifies position of the Camshaft to the ignition control module (ICM), engine control module (ECM) or powertrain control module (PCM).
Features:
- Delivers highly accurate timing signals to the engine control module, ensuring optimal engine performance.
- Facilitates precise variable valve timing, optimizing efficiency, power, and emissions. Accurate tracking of camshaft position enhances combustion cycles, enabling better engine performance and reduced environmental impact.
- Cam sensors are designed to withstand the harsh conditions within an engine compartment, including temperature fluctuations, vibrations, and exposure to engine fluids.
- Camshaft Position Sensor work together with the crankshaft position sensor and the vehicle's ECU to ensure that both ignition timing and fuel supply are correct for peak fuel economy, performance, and emissions.
- As the camshaft rotates, the magnet moves past the Hall-effect sensor, generating a voltage signal that is then sent to the engine control module, which uses it to determine the correct timing of the fuel injection and ignition systems.
Specifications:
| Number of Terminals | 3 |
| Connector Type | Blade |
| Connector Shape | Oblong |
| Connector Gender | Male |
| Terminal Gender | Male |
Interchanges With: Motorad 1CS222, Dorman 907-824, NTK 81520, NTK CHN3V521, NTK EC0055, Echlin CSS832, Opel 06238138, Optimal 08S086, Spectra Premium S10556, Tomco Products 22464, Meat & Doria 871198, Acura 8104565410, Wells SU4236, EFI Parts 303421, FVP 1CS222, SMP PC404, BWD CSS934, Beck/Arnley 180-0260, Airtex 5S1211, Kavo Parts ECA3501, VEMO V56720017, Hoffer Products 75171198, FAE 79417, Holstein 2CAM0242, Isuzu 8104565410, Isuzu 8104565980, PRENCO 4E-1125, Bremi 60118
