The Enginetech CC509 is a replacement cam bearing set for 2006-2011 Buick/Chevrolet/Pontiac 3.9L engines.
Important Notes
- Size: Standard (STD)
- Cam bearings must be pressed into the block with a proper installation driver - do not hammer directly
- Engines with 2.025 cam journals.
Specifications
| Part Number | CC509 |
| Product Type | Cam Bearing Set |
| Size | Standard (STD) |
| Cross-References | FEL-PRO:1922M, MAHLE:SH-2121S |
Vehicle Fitment
- 2006 Chevrolet Monte Carlo 3.9L 237ci V6 OHV [VIN:1]
- 2006 Chevrolet Uplander 3.9L 237ci V6
- 2006-2007 Buick Terraza 3.9L 237ci V6 OHV [VIN:1]
- 2006-2007 Chevrolet Malibu 3.9L 237ci V6 OHV [VIN:1]
- 2006-2007 Chevrolet Monte Carlo 3.5L 213ci V6 OHV [VIN:K]
- 2006-2007, 2009 Pontiac Montana 3.9L 237ci V6
- 2006-2009 Pontiac G6 3.9L 237ci V6 OHV [VIN:1]
- 2006-2010 Chevrolet Impala 3.5L 213ci V6 OHV [VIN:N]
- 2006-2011 Chevrolet Impala 3.5L 213ci V6 OHV [VIN:K]
- 2007 Chevrolet Monte Carlo 3.5L 213ci V6 OHV [VIN:N]
- 2007-2009 Chevrolet Equinox 3.4L 207ci V6 OHV [VIN:F]
- 2007-2009 Chevrolet Uplander 3.9L 237ci V6 OHV [VIN:W]
- 2007-2009 Pontiac Torrent 3.4L 207ci V6 OHV [VIN:F]
- 2007-2010 Chevrolet Malibu 3.5L 213ci V6 OHV [VIN:N]
- 2007-2010 Pontiac G6 3.5L 213ci V6 OHV [VIN:N]
- 2008 Chevrolet Impala 3.9L 237ci V6 OHV [VIN:3]
- 2008 Pontiac Montana 3.9L 237ci V6 OHV [VIN:W]
- 2009-2010 Chevrolet Malibu 3.5L 213ci V6 OHV [VIN:K]
- 2009-2011 Buick Lucerne 3.9L 237ci V6 OHV [VIN:M]
- 2009-2011 Chevrolet Impala 3.9L 237ci V6 OHV [VIN:M]
Enginetech camshaft bearing sets are manufactured as
"Problem Solver" replacements - better than OE with improved design and upgraded
materials. These bearings are produced from extruded steel tubes with a centrifugally
cast Babbitt lining, available in several grades depending on the application. Cam
bearings must be pressed into the block using the correct installation driver to avoid

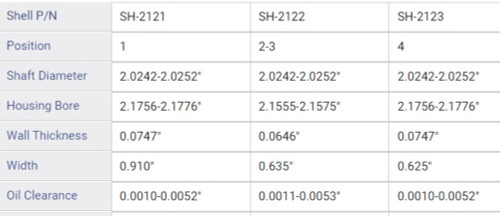

damage to the bearing or bore. Always verify housing bore diameter, cam journal diameter,
and bearing width specifications match your engine block before ordering. Enginetech
also offers rod bearings, main bearings, and complete engine rebuild kits for most
applications.
