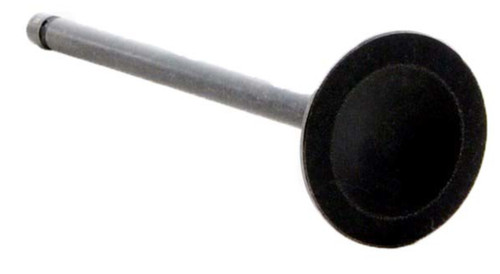

The Enginetech EM2869 exhaust valve features a 1.142" head diameter, 0.2342" stem (6mm nominal), and 4.492" overall length with a nitride-hardened stem. Fits 1993-2005 AMC/Chrysler/Mitsubishi 2.4L/2.5L/3.0L/3.5L applications.
Important Notes
- Sold individually as a single valve. Order the quantity required for your engine configuration (typically one per cylinder per valve position).
- Nitride-hardened stem surface resists wear and galling in high-temperature and high-load applications.
- Always verify head diameter, stem diameter, overall valve length, and groove count against the OE valve being replaced before installation - valve dimensions vary across engine families and a visual match alone is not sufficient.
Specifications
| Part Number | EM2869 |
| Valve Type | Exhaust Valve |
| Head Diameter | 1.142" |
| Stem Diameter | 0.2342" (6mm nominal) |
| Valve Length | 4.492" OAL |
| Stem Finish | Nitrided Stem |
| Number of Grooves | 1 |
| Weight | 0.25 lbs |
| OEM Cross-Refs | DNJ Rock: EV135, Fed. Mogul: V-4512, ITM: RX9549, Mahle Clevite: 211-4018, Manley: A2869, SBI: 10535 |
Vehicle Fitment
- 1993-2005 AMC 2.4L / 144 SOHC L4 16V "G" Mits. 86.50mm Bore
- 1993-2005 Chrysler 2.4L / 144 SOHC L4 16V "G" Mits. 86.50mm Bore
- 1995-2000 Chrysler 2.5L / 152 SOHC V6 24V Mits. 6G73 83.50mm Bore
- 2001-2005 Chrysler 3.0L / 181 SOHC V6 24V "H" Mits. Nat. Asp. 91.10mm Bore
- 1993-2005 Mitsubishi 2.4L / 2351 SOHC L4 16V 4G64 86.50mm Bore
- 1994 Mitsubishi 2.4L / 2351 DOHC L4 16V 4G64K 86.50mm Bore
- 1999-2005 Mitsubishi 3.0L / 2972 SOHC V6 24V 6G72 91.10mm Bore
- 1997-2004 Mitsubishi 3.5L / 3496 SOHC V6 24V 6G74 93.00mm Bore
- 1997-2003 Mitsubishi 2.4L / 2351 SOHC L4 16V 4G64 86.50mm Bore
- 1995-2003 Mitsubishi 3.0L / 2972 SOHC V6 24V 6G72 91.10mm Bore
Product Video
Watch the Enginetech exhaust valve overview: https://youtu.be/G487Dw8HtII
Watch the Enginetech exhaust valve overview: https://youtu.be/eLaQHop7rH8
Enginetech standard valves are stock-replacement engine valves produced from OE grade materials or better, engineered with the production engine rebuilder in mind. Face runout, stem finish, and stem diameter tolerances are held to some of the tightest standards in the internal engine parts industry, and every valve is inspected by on-site engineers against a documented quality plan before it leaves the plant. The line covers domestic, import, and common high-performance applications across a full range of head diameters, stem diameters, and overall lengths, with chrome-plated and nitride-hardened stem finishes available where the engine's operating conditions call for the upgrade. Always verify head diameter, stem diameter, valve length, groove count, and any oversize stem requirement against the original valve being replaced before installing, as multiple valve configurations can share the same vehicle nameplate.
