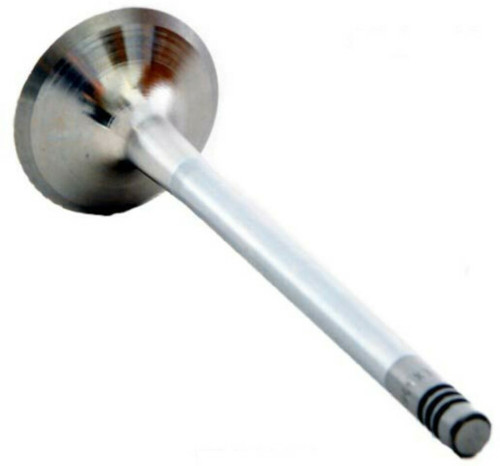

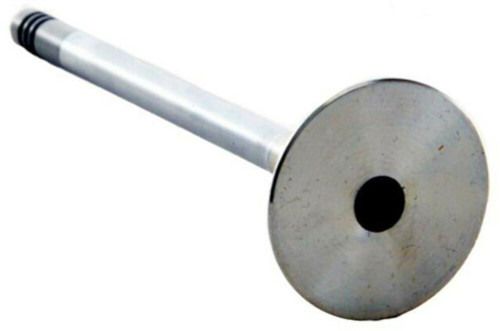

The Enginetech EM3483 exhaust valve features a 1.177" head diameter, 0.2340" stem (6mm nominal), and 4.090" overall length with Stellite-faced severe-service construction. Fits 1997-2006 Audi/Volkswagen 1.8L/2.7L/2.8L/3.0L applications.
Important Notes
- Sold individually as a single valve. Order the quantity required for your engine configuration (typically one per cylinder per valve position).
- Chrome-plated stem provides a hard, low-friction wear surface for extended service life.
- Stellite-faced construction is designed for severe-service exhaust temperatures and extended duty cycles typical of heavy-load or high-RPM operation.
- Always verify head diameter, stem diameter, overall valve length, and groove count against the OE valve being replaced before installation - valve dimensions vary across engine families and a visual match alone is not sufficient.
Specifications
| Part Number | EM3483 |
| Valve Type | Exhaust Valve |
| Head Diameter | 1.177" |
| Stem Diameter | 0.2340" (6mm nominal) |
| Valve Length | 4.090" OAL |
| Material | Stellite faced (severe-service) |
| Stem Finish | Chrome Stem |
| Number of Grooves | 3 |
| Weight | 0.25 lbs |
| OEM Cross-Refs | AUDI: 058109611M, DNJ Rock: EV800A, Elgin: E5073, Elgin: EX5073, Fed. Mogul: V4612X, Fed. Mogul: V-4615X |
Vehicle Fitment
- 1997-2000 Audi 1.8L / 1781 DOHC L4 20V AEB Turbo 81.00mm Bore
- 2000-2006 Audi 1.8L / 1781 DOHC L4 20V ATC, AWP Turbo 81.00mm Bore
- 2000-2006 Audi 1.8L / 1781 DOHC L4 20V ATW, AWM, AMB Turbo 81.00mm Bore
- 2001-2006 Audi 1.8L / 1781 DOHC L4 20V AMU, BEA Turbo 81.00mm Bore
- 2000-2005 Audi 2.7L / 2671 DOHC V6 30V APB, BEL Bi-Turbo 81.00mm Bore
- 1998-2001 Audi 2.8L / 2771 DOHC V6 30V AHA,ATQ 82.50mm Bore
- 2002-2006 Audi 3.0L / 2976 DOHC V6 30V AVK, BGN 82.50mm Bore
- 1998-2005 Volkswagen 2.8L / 2771 DOHC V6 30V AHA, ATQ 82.50mm Bore
Product Video
Watch the Enginetech exhaust valve overview: https://youtu.be/G487Dw8HtII
Watch the Enginetech exhaust valve overview: https://youtu.be/eLaQHop7rH8
Enginetech standard valves are stock-replacement engine valves produced from OE grade materials or better, engineered with the production engine rebuilder in mind. Face runout, stem finish, and stem diameter tolerances are held to some of the tightest standards in the internal engine parts industry, and every valve is inspected by on-site engineers against a documented quality plan before it leaves the plant. The line covers domestic, import, and common high-performance applications across a full range of head diameters, stem diameters, and overall lengths, with chrome-plated and nitride-hardened stem finishes available where the engine's operating conditions call for the upgrade. Always verify head diameter, stem diameter, valve length, groove count, and any oversize stem requirement against the original valve being replaced before installing, as multiple valve configurations can share the same vehicle nameplate.
