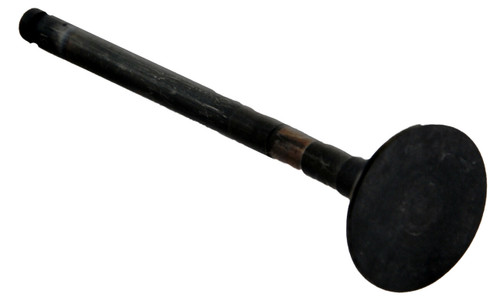

The Enginetech EM4503S exhaust valve features a 1.161" head diameter, 0.2155" stem (5.5mm nominal), and 4.165" overall length with Stellite-faced severe-service construction and a nitride-hardened stem. Fits 2003-2015 Toyota 4.0L applications.
Important Notes
- Sold individually as a single valve. Order the quantity required for your engine configuration (typically one per cylinder per valve position).
- Nitride-hardened stem surface resists wear and galling in high-temperature and high-load applications.
- Stellite-faced construction is designed for severe-service exhaust temperatures and extended duty cycles typical of heavy-load or high-RPM operation.
- Always verify head diameter, stem diameter, overall valve length, and groove count against the OE valve being replaced before installation - valve dimensions vary across engine families and a visual match alone is not sufficient.
Specifications
| Part Number | EM4503S |
| Valve Type | Exhaust Valve |
| Head Diameter | 1.161" |
| Stem Diameter | 0.2155" (5.5mm nominal) |
| Valve Length | 4.165" OAL |
| Material | Stellite faced (severe-service) |
| Stem Finish | Nitrided Stem |
| Number of Grooves | 1 |
| Weight | 0.25 lbs |
| OEM Cross-Refs | DNJ Rock: EV969, Elgin: E5229, Fed. Mogul: V4760X, SBI: 13089S, Thermo King: 1371531091, Topline: EVTO47 |
Vehicle Fitment
2003-2009 Toyota 4.0L / 3955 DOHC V6 24V 1GRFE 94.00mm Bore; 2010 Toyota 4.0L / 3955 DOHC V6 24V 1GRFE 94.00mm Bore; 2011-2015 Toyota 4.0L / 3955 DOHC V6 24V 1GRFE 94.00mm Bore.
Product Video
Watch the Enginetech exhaust valve overview: https://youtu.be/G487Dw8HtII
Watch the Enginetech exhaust valve overview: https://youtu.be/eLaQHop7rH8
Enginetech standard valves are stock-replacement engine valves produced from OE grade materials or better, engineered with the production engine rebuilder in mind. Face runout, stem finish, and stem diameter tolerances are held to some of the tightest standards in the internal engine parts industry, and every valve is inspected by on-site engineers against a documented quality plan before it leaves the plant. The line covers domestic, import, and common high-performance applications across a full range of head diameters, stem diameters, and overall lengths, with chrome-plated and nitride-hardened stem finishes available where the engine's operating conditions call for the upgrade. Always verify head diameter, stem diameter, valve length, groove count, and any oversize stem requirement against the original valve being replaced before installing, as multiple valve configurations can share the same vehicle nameplate.
