Enginetech EPK141HV | High Volume Engine Oil Pump for Small Block Chevrolet 262/302/305/307/327/350

Product Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Specification	Value
Mounting Hole Diameter	0.250
Mounting Hole Quantity	2
Additional Volume Over Stock Percentage	25%
Width	3.190
Height	4.430
Housing Material	Cast Iron
Drive Type	Drive Shaft
Oil Pump Type	Gear
Gasket Or Seal Included	No
Grade Type	Regular
Oil Pump Pressure Type	Standard Pressure
Oil Pump Volume Type	Standard Volume

\n
\n

Competitive Interchange Specifications

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Brand	Product Code
Avon	A-55HV
Dynagear	DM-55HV
Elgin	EM-55HV
Enginetech	EP55HV
Fed. Mogul	224-4143
Mahle Clevite	601-1047
Melling	M55HV

\n
\n

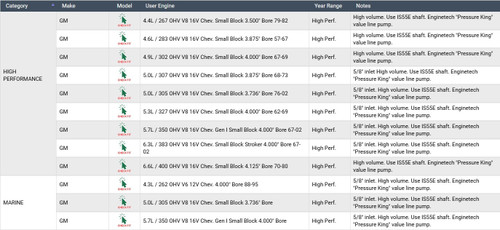

Application Summary

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Category	Make	Engine	Year Range	Notes
HIGH PERFORMANCE	GM	4.3L / 262 OHV V8 16V Chev. Small Block 3.671" Bore 75-76	High Perf.	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.3L / 262 OHV V6 12V Chev. Six Cylinder 4.000" Bore 85-14	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.4L / 267 OHV V8 16V Chev. Small Block 3.500" Bore 79-82	High Perf.	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.6L / 283 OHV V8 16V Chev. Small Block 3.875" Bore 57-67	High Perf.	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.9L / 302 OHV V8 16V Chev. Small Block 4.000" Bore 67-69	High Perf.	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.0L / 305 OHV V8 16V Chev. Small Block 3.736" Bore 76-02	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.0L / 307 OHV V8 16V Chev. Small Block 3.875" Bore 68-73	High Perf.	5/8" inlet High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.3L / 327 OHV V8 16V Chev. Small Block 4.000" Bore 62-69	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.7L / 350 OHV V8 16V Chev. Gen I Small Block 4.000" Bore 67-02	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	6.3L / 383 OHV V8 16V Chev. Small Block Stroker 4.000" Bore 67-02	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	6.6L / 400 OHV V8 16V Chev. Small Block 4.125" Bore 70-80	High Perf.	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
MARINE	GM	4.3L / 262 OHV V6 12V Chev. 4.000" Bore 88-95	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.0L / 305 OHV V8 16V Chev. Small Block 3.736" Bore	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.7L / 350 OHV V8 16V Chev. Gen I Small Block 4.000" Bore	High Perf.	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
Car	GM	5.4L / 327 OHV V8 16V Chev. 4.000" Bore 62-69	64-67	High volume. Except Chevy II. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.4L / 327 OHV V8 16V Chev. 4.000" Bore 62-69	68-69	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	3.3L / 200 OHV V6 12V "M" Chev. 3.500" Bore 78-79	78-79	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	3.8L / 229 OHV V6 12V "9,K" Chev. 3.736" Bore 80-84	80-84	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.3L / 262 OHV V6 12V "Z" Chev. 4.000" Bore 85-93	85-93	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.3L / 262 OHV V8 16V "G" Chev. 3.671" Bore 75-76	75-76	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.3L / 265 OHV V8 16V "W" Chev. 94.89mm Bore 94-96	94-94	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.4L / 267 OHV V8 16V "J" Chev. 3.500" Bore 79-82	79-82	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.9L / 302 OHV V8 16V Chev 4.000" Bore 67-69	67-69	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-93	76-93	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-73	68-73	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.7L / 348 OHV V8 16V Chev. 4.125" Bore 58-61	58-61	High volume. Enginetech "Pressure King" value line pump.
	GM	5.7L / 350 OHV V8 16V Chev. 4.000" Bore 67-97	67-94	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	6.6L / 400 OHV V8 16V Chev. 4.125" Bore 70-76	70-76	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	6.7L / 409 OHV V8 16V Chev. 4.312" Bore 61-65	61-65	High volume. Enginetech "Pressure King" value line pump.
TRUCK, VAN, SUV	GM, CHEVROLET	3.3L / 200 OHV V6 12V "M" Chev. 3.500" Bore 78-79	78-79	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	3.8L / 229 OHV V6 12V "9,K" Chev. 3.736" Bore 80-84	80-84	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	4.3L / 262 OHV V6 12V "B,N,W,X,Z" Chev. 4.000" Bore 85-14	85-94	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	4.3L / 262 OHV V6 12V "Z" Chev. Turbo 4.000" Bore 91-93	91-93	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	4.4L / 267 OHV V8 16V "J" Chev. 3.500" Bore 79-82	79-82	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	4.6L / 283 OHV V8 16V Chev. 3.875" Bore 57-67	57-67	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-02	76-94	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-73	68-73	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	5.4L / 327 OHV V8 16V Chev. 4.000" Bore 66-68	66-68	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	5.7L / 348 OHV V8 16V Chev. 4.125" Bore 58-65	58-65	High volume. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-02	68-94	5/8" inlet. High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM, CHEVROLET	6.6L / 400 OHV V8 16V Chev. 4.125" Bore 70-80	70-80	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
Car	GM	4.6L / 283 OHV V8 16V Chev. 3.875" Bore 57-67	58-63	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	4.6L / 283 OHV V8 16V Chev. 3.875" Bore 57-67	64-67	High volume. Except Chevy II. Use IS55E shaft. Enginetech "Pressure King" value line pump.
	GM	5.4L / 327 OHV V8 16V Chev. 4.000" Bore 62-69	62-63	High volume. Use IS55E shaft. Enginetech "Pressure King" value line pump.
