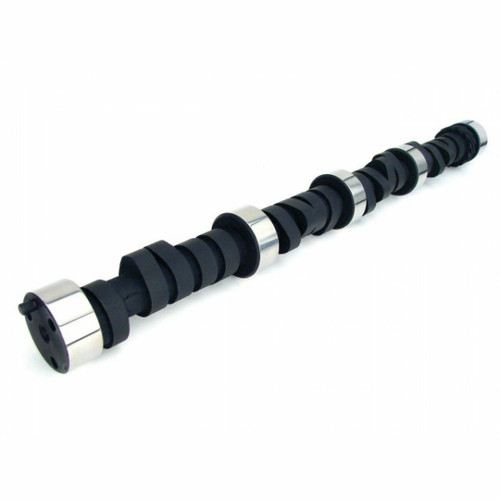

The Enginetech ES1013R is a replacement stage 2 hydraulic engine camshaft for 1957-1995 Buick/Cadillac/Chevrolet 4.6L/5.3L/4.9L engines.
Important Notes
- Follower/lifter type required: Flat
- Performance grade: Stage 2 - designed for street/strip use

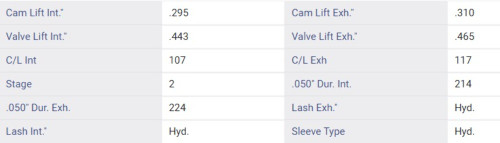

Camshaft Specifications
| Part Number | ES1013R |
| Camshaft Type | Hydraulic |
| Performance Grade | Stage 2 |
| Duration @ .050" Intake | 214 degrees |
| Duration @ .050" Exhaust | 224 degrees |
| Valve Lift Intake | .443" |
| Valve Lift Exhaust | .465" |
| Lobe Lift | .310" |
| Cross-References | Elgin:E-922-P, Melling:22203, FEL-PRO:CS-1013R, MAHLE:229-1988 |

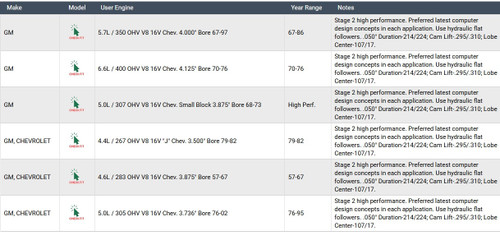

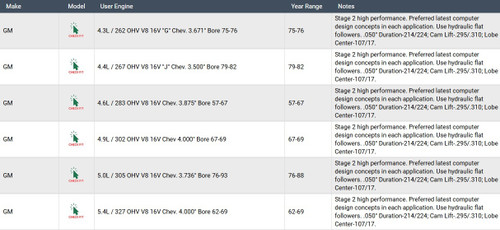

Vehicle Fitment
- 1957 Chevrolet One-Fifty Series 4.6L 283ci V8 OHV
- 1957 Chevrolet Two-Ten Series 4.6L 283ci V8 OHV
- 1957-1958 Chevrolet Del Ray 4.6L 283ci V8 OHV
- 1957-1958 Chevrolet Sedan Delivery 4.6L 283ci V8 OHV
- 1957-1958 Chevrolet Truck 4.6L 283ci V8 OHV
- 1957-1961 Chevrolet Corvette 4.6L 283ci V8 OHV
- 1957-1967 Chevrolet Bel Air 4.6L 283ci V8 OHV
- 1957-1967 Pontiac Laurentian 4.6L 283ci V8 OHV
- 1958 Chevrolet Yeoman 4.6L 283ci V8 OHV
- 1958-1967 Chevrolet Biscayne 4.6L 283ci V8 OHV
- 1958-1967 Chevrolet Impala 4.6L 283ci V8 OHV
- 1959 Chevrolet 3B 4.6L 283ci V8 OHV
- 1959 Chevrolet 3C 4.6L 283ci V8 OHV
- 1959 Chevrolet 3D 4.6L 283ci V8 OHV
- 1959 Chevrolet 3E 4.6L 283ci V8 OHV
- 1959 Chevrolet 3F 4.6L 283ci V8 OHV
- 1959 Chevrolet 3G 4.6L 283ci V8 OHV
- 1959-1960 Chevrolet El Camino 4.6L 283ci V8 OHV
- 1959-1961 Chevrolet Brookwood 4.6L 283ci V8 OHV
- 1959-1961 Chevrolet Kingswood 4.6L 283ci V8 OHV
- 1959-1961 Chevrolet Parkwood 4.6L 283ci V8 OHV
- 1960 GMC Truck 4.6L 283ci V8 OHV
- 1960-1962 Chevrolet C40 4.6L 283ci V8 OHV
- 1960-1963 GMC 1000 Series 4.6L 283ci V8 OHV
- 1960-1963 GMC 1500 Series 4.6L 283ci V8 OHV
- 1960-1963 GMC 2500 Series 4.6L 283ci V8 OHV
- 1960-1965 GMC Suburban 4.6L 283ci V8 OHV
- 1960-1966 Chevrolet Suburban 4.6L 283ci V8 OHV
- 1960-1966 GMC 3000 4.6L 283ci V8 OHV
- 1960-1966 GMC 3500 4.6L 283ci V8 OHV
- 1960-1967 Chevrolet C10 Pickup 4.6L 283ci V8 OHV
- 1960-1967 Chevrolet C20 Pickup 4.6L 283ci V8 OHV
- 1960-1967 Chevrolet C30 Pickup 4.6L 283ci V8 OHV
- 1960-1967 Chevrolet K10 Pickup 4.6L 283ci V8 OHV
- 1961-1967 Chevrolet K20 Pickup 4.6L 283ci V8 OHV
- 1962-1968 Chevrolet Corvette 5.3L 327ci V8 OHV
- 1962-1969 Chevrolet Bel Air 5.3L 327ci V8 OHV
- 1962-1969 Chevrolet Biscayne 5.3L 327ci V8 OHV
- 1962-1969 Chevrolet Impala 5.3L 327ci V8 OHV
- 1962-1969 Pontiac Laurentian 5.3L 327ci V8 OHV
- 1962-1969 Pontiac Parisienne 5.3L 327ci V8 OHV
- 1962-1969 Pontiac Strato-Chief 5.3L 327ci V8 OHV
- 1963-1967 Chevrolet Chevy II 4.6L 283ci V8 OHV
- 1964-1967 Chevrolet Chevelle 4.6L 283ci V8 OHV
- 1964-1968 Chevrolet Chevelle 5.3L 327ci V8 OHV
- 1965-1968 Chevrolet Chevy II 5.3L 327ci V8 OHV
- 1965-1968 Pontiac Acadian 5.3L 327ci V8 OHV
- 1966 Chevrolet Suburban 5.3L 327ci V8 OHV
- 1966-1967 Chevrolet Caprice 4.6L 283ci V8 OHV
- 1966-1968 Chevrolet C10 Pickup 5.3L 327ci V8 OHV
- 1966-1968 Chevrolet C20 Pickup 5.3L 327ci V8 OHV
- 1966-1968 Chevrolet C30 Pickup 5.3L 327ci V8 OHV
- 1966-1968 Chevrolet El Camino 5.3L 327ci V8 OHV
- 1966-1968 Chevrolet K10 Pickup 5.3L 327ci V8 OHV
- 1966-1968 Chevrolet K20 Pickup 5.3L 327ci V8 OHV
- 1966-1969 Chevrolet Caprice 5.3L 327ci V8 OHV
- 1967 Chevrolet C10 Suburban 4.6L 283ci V8 OHV
- 1967 Chevrolet C20 Suburban 4.6L 283ci V8 OHV
- 1967 Chevrolet G20 Van 4.6L 283ci V8 OHV
- 1967 Chevrolet K10 Suburban 4.6L 283ci V8 OHV
- ...and 403 additional applications
Enginetech high-performance camshafts are ground to precision
specifications using the latest computer-aided design concepts to optimize power output
while maintaining street drivability. These performance grinds are designed as direct
replacements that bolt in without engine modifications. Always install a new timing set
and replace all lifters when replacing a camshaft - reusing worn lifters will cause
rapid failure. Use the specified hydraulic flat or roller followers as noted. Verify
part fitment by year, make, model, and engine displacement before ordering.
