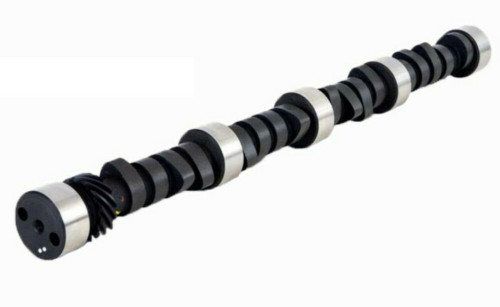

The Enginetech ES1088R is a replacement stage 1 hydraulic engine camshaft for 1965-1998 Chevrolet/GMC/Pontiac 6.5L/7.0L/6.6L engines.
Important Notes
- Follower/lifter type required: Flat
- Performance grade: Stage 1 - designed for street/strip use
Camshaft Specifications
| Part Number | ES1088R |
| Camshaft Type | Hydraulic |
| Performance Grade | Stage 1 |
| Duration @ .050" Intake | 204 degrees |
| Duration @ .050" Exhaust | 214 degrees |
| Valve Lift Intake | .478" |
| Valve Lift Exhaust | .503" |
| Lobe Lift | .296" |
| Cross-References | Elgin:E-931-P, Melling:MTC-2, FEL-PRO:CS-1088R, MAHLE:229-2004 |
Vehicle Fitment
- 1965 Chevrolet Corvette 6.5L 396ci V8 OHV
- 1965-1969 Chevrolet Bel Air 6.5L 396ci V8 OHV
- 1965-1969 Chevrolet Biscayne 6.5L 396ci V8 OHV
- 1965-1969 Chevrolet Impala 6.5L 396ci V8
- 1965-1969 Chevrolet Impala 6.5L 396ci V8 OHV
- 1966-1969 Chevrolet Bel Air 7.0L 427ci V8 OHV
- 1966-1969 Chevrolet Biscayne 7.0L 427ci V8 OHV
- 1966-1969 Chevrolet Caprice 6.5L 396ci V8 OHV
- 1966-1969 Chevrolet Caprice 7.0L 427ci V8 OHV
- 1966-1969 Chevrolet Corvette 7.0L 427ci V8 OHV
- 1966-1969 Chevrolet Impala 7.0L 427ci V8 OHV
- 1967-1969 Chevrolet Camaro 6.5L 396ci V8 OHV
- 1968 Chevrolet Camaro 6.5L 396ci V8
- 1968 Chevrolet Chevy II 6.5L 396ci V8
- 1968 Chevrolet Chevy II 6.5L 396ci V8 OHV
- 1968-1969 Chevrolet Bel Air 6.5L 396ci V8
- 1968-1969 Chevrolet Biscayne 6.5L 396ci V8
- 1968-1969 Chevrolet C10 Pickup 6.5L 396ci V8
- 1968-1969 Chevrolet C10 Suburban 6.5L 396ci V8
- 1968-1969 Chevrolet C20 Pickup 6.5L 396ci V8
- 1968-1969 Chevrolet C20 Suburban 6.5L 396ci V8
- 1968-1969 Chevrolet C30 Pickup 6.5L 396ci V8
- 1968-1969 Chevrolet Caprice 6.5L 396ci V8
- 1968-1969 Chevrolet El Camino 6.5L 396ci V8
- 1968-1969 Chevrolet K10 Pickup 6.5L 396ci V8
- 1968-1969 Chevrolet K10 Suburban 6.5L 396ci V8
- 1968-1969 Chevrolet K20 Pickup 6.5L 396ci V8
- 1968-1969 Chevrolet K20 Suburban 6.5L 396ci V8
- 1968-1969 Chevrolet K30 Pickup 6.5L 396ci V8
- 1968-1969 GMC C15/C1500 Pickup 6.5L 396ci V8
- 1968-1969 GMC C15/C1500 Suburban 6.5L 396ci V8
- 1968-1969 GMC C25/C2500 Pickup 6.5L 396ci V8
- 1968-1969 GMC C25/C2500 Suburban 6.5L 396ci V8
- 1968-1969 GMC C35/C3500 Pickup 6.5L 396ci V8
- 1968-1969 GMC K15/K1500 Pickup 6.5L 396ci V8
- 1968-1969 GMC K15/K1500 Suburban 6.5L 396ci V8
- 1968-1969 GMC K25/K2500 Pickup 6.5L 396ci V8
- 1968-1969 GMC K25/K2500 Suburban 6.5L 396ci V8
- 1968-1969 GMC K35/K3500 Pickup 6.5L 396ci V8
- 1968-1969 Pontiac Acadian 6.5L 396ci V8 OHV
- 1969 Chevrolet Brookwood 6.5L 396ci V8 OHV
- 1969 Chevrolet Brookwood 7.0L 427ci V8 OHV
- 1969 Chevrolet Camaro 7.0L 427ci V8 OHV
- 1969 Chevrolet Estate 6.5L 396ci V8 OHV
- 1969 Chevrolet Estate 7.0L 427ci V8 OHV
- 1969 Chevrolet Kingswood 6.5L 396ci V8 OHV
- 1969 Chevrolet Kingswood 7.0L 427ci V8 OHV
- 1969 Chevrolet Nova 6.5L 396ci V8 OHV
- 1969 Chevrolet Townsman 6.5L 396ci V8 OHV
- 1969 Chevrolet Townsman 7.0L 427ci V8 OHV
- 1969-1970 Chevrolet Nova 6.5L 396ci V8
- 1970 Chevrolet Estate 6.6L 402ci V8 OHV
- 1970 Chevrolet Estate 7.4L 454ci V8 OHV
- 1970 Chevrolet Nova 6.6L 402ci V8
- 1970, 1972 Chevrolet Chevelle 6.6L 402ci V8
- 1970-1971 Chevrolet Bel Air 7.4L 454ci V8 OHV
- 1970-1971 Chevrolet Biscayne 7.4L 454ci V8 OHV
- 1970-1971 Chevrolet Brookwood 7.4L 454ci V8 OHV
- 1970-1971 Chevrolet Caprice 7.4L 454ci V8 OHV
- 1970-1971 Chevrolet Chevelle 7.4L 454ci V8 OHV
- ...and 217 additional applications
Enginetech high-performance camshafts are ground to precision
specifications using the latest computer-aided design concepts to optimize power output
while maintaining street drivability. These performance grinds are designed as direct
replacements that bolt in without engine modifications. Always install a new timing set
and replace all lifters when replacing a camshaft - reusing worn lifters will cause
rapid failure. Use the specified hydraulic flat or roller followers as noted. Verify
part fitment by year, make, model, and engine displacement before ordering.
