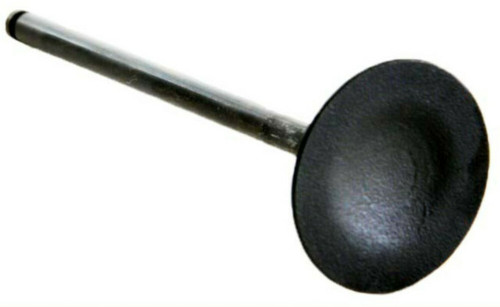

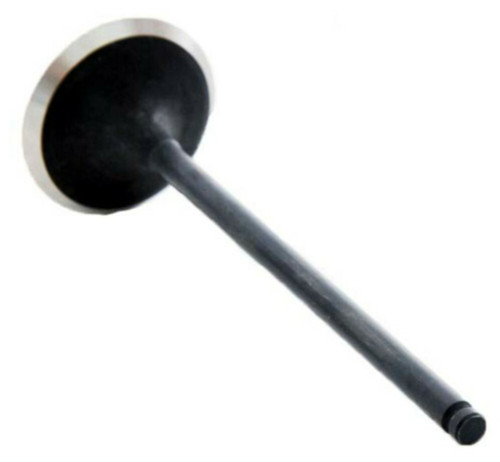

Enginetech part number IM1010 is a direct-replacement intake valve for 2002-2012 Acura/Honda 2.0L, 2.4L, 2.3L applications. Key specifications: 1.377" head, 0.2153" stem, 4.292" overall length, nitrided stem.
Important Notes
- Nitride-hardened stem surface resists wear and galling in high-temperature and high-load applications.
- Always verify head diameter, stem diameter, and overall valve length against the OE valve being replaced before installation. Valve dimensions vary across engine families - a visual match is not enough.
Specifications
| Part Number | IM1010 |
| Valve Type | Intake Valve |
| Head Diameter | 1.377" |
| Stem Diameter | 0.2153" (5.50mm nominal) |
| Valve Length | 4.292" OAL |
| Stem Finish | Nitrided Stem |
| Number of Grooves | 1 |
| Weight | 1.50 lbs |
| OEM Cross-Refs | DNJ Rock: IV216, ITM: RV9637, Safety: VN12-106, Topline: IVAC7 |
Vehicle Fitment
- 2002-2006 Acura 2.0L / 1998 DOHC L4 16V K20A3
- 2002-2005 Honda 2.0L / 1998 DOHC L4 16V K20A3
- 2003-2005 Honda 2.4L / 2354 DOHC L4 16V K24A4
- 2006-2007 Honda 2.4L / 2354 DOHC L4 16V K24A8
- 2007-2012 Acura 2.3L / 2300 DOHC L4 16V K23A1 Turbo
- 2002-2006 Honda 2.4L / 2354 DOHC L4 16V K24A1
- 2003-2006 Honda 2.4L / 2354 DOHC L4 16V K24A4
- 2007-2009 Honda 2.4L / 2354 DOHC L4 16V K24Z1
- 2007-2011 Honda 2.4L / 2354 DOHC L4 16V K24A8
Product Video
Watch the Enginetech intake valve overview: https://youtu.be/G487Dw8HtII
Watch the Enginetech intake valve overview: https://youtu.be/eLaQHop7rH8
Enginetech standard valves are stock-replacement engine valves produced from OE grade materials or better, engineered with the production engine rebuilder in mind. Face runout, stem finish, and stem diameter tolerances are held to some of the tightest standards in the internal engine parts industry, and every valve is inspected by on-site engineers against a documented quality plan before it leaves the plant. The line covers domestic, import, and common high-performance applications across a full range of head diameters, stem diameters, and overall lengths, with chrome-plated and nitride-hardened stem finishes available where the engine's operating conditions call for the upgrade. Always verify head diameter, stem diameter, valve length, groove count, and any oversize stem requirement against the original valve being replaced before installing, as multiple valve configurations can share the same vehicle nameplate.
