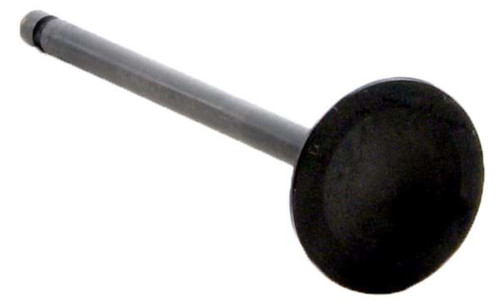

Enginetech part number IM2538 is a direct-replacement intake valve for 1984-1990 Honda 1.8L, 2.0L applications. Key specifications: 1.181" head, 0.2579" stem, 4.764" overall length, nitrided stem.
Important Notes
- Nitride-hardened stem surface resists wear and galling in high-temperature and high-load applications.
- Always verify head diameter, stem diameter, and overall valve length against the OE valve being replaced before installation. Valve dimensions vary across engine families - a visual match is not enough.
Specifications
| Part Number | IM2538 |
| Valve Type | Intake Valve |
| Head Diameter | 1.181" |
| Stem Diameter | 0.2579" (7.00mm nominal) |
| Valve Length | 4.764" OAL |
| Stem Finish | Nitrided Stem |
| Number of Grooves | 1 |
| Weight | 1.50 lbs |
| OEM Cross-Refs | AC Clevite: 253928, Beck Arnley: 0213243, Beck Arnley: 021-3243, Dana-Perfect Circle: 2112669, DNJ Rock: EV206, DNJ Rock: IV206 |
Vehicle Fitment
- 1984-1987 Honda 1.8L / 1829 SOHC L4 R18A1
- 1985-1985 Honda 1.8L / 1829 SOHC L4 ES1, ES2, ES3
- 1986-1986 Honda 2.0L / 1955 SOHC L4 BT, A20A3
- 1986-1989 Honda 2.0L / 1955 SOHC L4 12V BS, A20A1
- 1987-1989 Honda 2.0L / 1955 SOHC L4 BT, A20A3
- 1988-1990 Honda 2.0L / 1958 SOHC L4 12V B20A3
Product Video
Watch the Enginetech intake valve overview: https://youtu.be/G487Dw8HtII
Watch the Enginetech intake valve overview: https://youtu.be/eLaQHop7rH8
Enginetech standard valves are stock-replacement engine valves produced from OE grade materials or better, engineered with the production engine rebuilder in mind. Face runout, stem finish, and stem diameter tolerances are held to some of the tightest standards in the internal engine parts industry, and every valve is inspected by on-site engineers against a documented quality plan before it leaves the plant. The line covers domestic, import, and common high-performance applications across a full range of head diameters, stem diameters, and overall lengths, with chrome-plated and nitride-hardened stem finishes available where the engine's operating conditions call for the upgrade. Always verify head diameter, stem diameter, valve length, groove count, and any oversize stem requirement against the original valve being replaced before installing, as multiple valve configurations can share the same vehicle nameplate.
