The Holley EFI Terminator X Max EFI System - EV6, Drive-by-Wire for 2013+ Gen III Hemi (part number 550-1425). EV6 Injectors - Drive-by-Wire Throttle Body Control
Features:
- Plug and play Chrysler GEN III Hemi control - 2003-2006 Engines such as the 5.7L, 6.1L and 6.4L engines utilizing the factory DBW (Drive by Wire) throttle body. (Non-VVT only)
- Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112)
- EV6 (USCAR) injector harness included
- High Impedance Injector drivers power Holley EFI and most stock injectors - Injector support chart found in instructions (will not support low impedance injectors)
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications - internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
- Vacuum hose adapters included - (1/8", ¼", and 3/16" sizes)
- 4 inputs - 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
- Boost Control - boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
- Nitrous Control - channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
- Advanced Tables - (4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
- 3.5" touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine

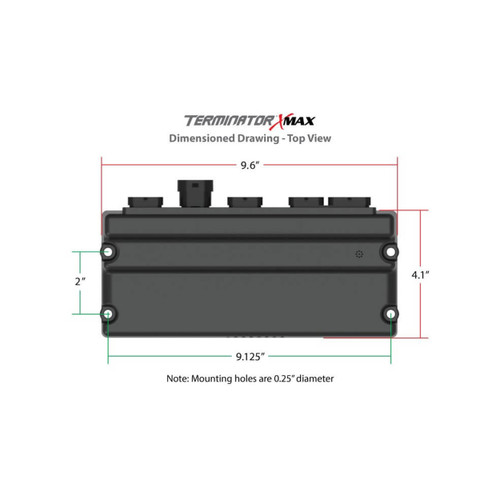

- Compact ECU (Engine Control Unit) - At only 7.45" x 4.1" x 1.66" the compact packaging allows mounting virtually anywhere. REMINDER: diagnostic LED's must face up!
- FREE EFI Tuning software - For compete control of your Terminator X power plant
Specifications:
| Product Grade | Performance |
| Color | Black |
| Drive-By-Wire | Yes |
| Engine | Gen III Hemi |
| Finish | Textured |
| Handheld Included | Yes |
| Injector Connector | USCAR (EV6) |
| Year Range | 2007-2013+ |
Emissions: Not legal for sale or use in California on any pollution-controlled motor vehicle.
