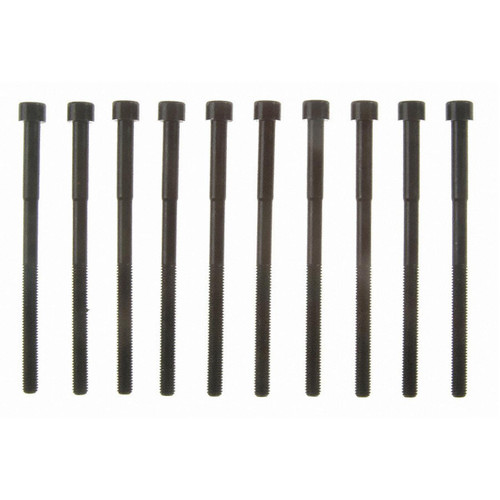

The Fel-Pro ES 72197 is a cylinder head bolt set that secures the cylinder head to the engine block, clamping the head gasket to the correct load when torqued to the manufacturer's sequence and specification on the applications listed below, giving you correct-fit replacement hardware for the job.
| Brand | Fel-Pro |
| Part Number | ES 72197 |
| Product Type | Cylinder Head Bolt Set |
| Bolt Diameter | 9MM |
| Thread Pitch | 1.5 |
| Critical Length | 143mm |
| Thread Length | 70mm |
| Head Size | 8mm |
| Design | Head bolts w/o Washers; Replacement recommended |
| Engine | L4 (1.5L) |
| UPC | 614046836129 |
| Shipping Dimensions | 17.25 x 12.25 x 0.17 in, 0.21 lb |
Vehicle Fitment:
- 2000-2005 Toyota Echo 1.5L
- 2001-2009 Toyota Prius 1.5L
- 2012-2019 Toyota Prius C 1.5L
- 2006-2019 Toyota Yaris 1.5L
- 2004-2006 Scion xA 1.5L
- 2004-2006 Scion xB 1.5L
Important Notes:
- Torque the head bolts in the correct sequence and stages to the manufacturer's specification; many head bolts are torque-to-yield and should not be reused.
- Install a fresh head gasket set at the same time and clean the bolt holes before torquing.
- Verify the application and engine configuration against your engine before ordering; hardware is matched to specific engines.
