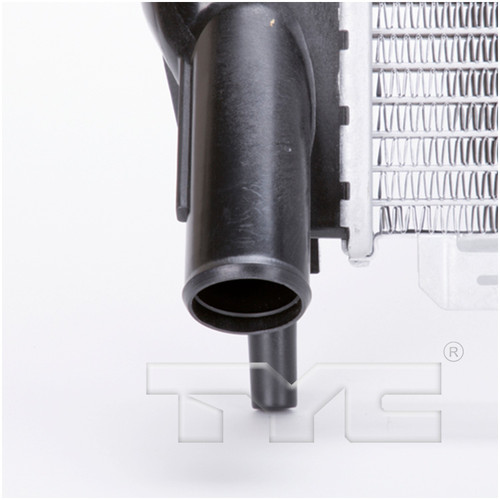

The TYC Radiator (part number 1164) is a direct-fit replacement for 1991-1994 Ford and Mazda vehicles with 4.0L and 3.0L engines. 91-94 FD XPOLR 4.0L V6 AT 2R PA (w/ AC) RAD
Features:
- OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Rigorous and accelerated cycling tests to ensure product service quality and durability. Individually leak-tested to ensure product has no leaks.
Specifications:
| Flow Configuration | Crossflow |
| Core Thickness (in) | 2.2 |
| Core Height (in) | 18.11 |
| Total Tube Count | 41 |
| Core Length (in) | 17.99 |
| Outlet Diameter (in) | 1.50 |
| Outlet Connection Type | Hose Clamp |
| Toc Distance (in) | 12.01 |
| Inlet Diameter (in) | 1.42 |
| Tube Count (every 4") | 10 |
| Fin Wave Height (in) | 0.35 |
| Total Fin Row Count | 42 |
| Accessories Included | OC Adapters (5/8"-18 UNF and 1/2-2" UNF) and Clip for S.P. |
| Bottom Header | 3.17x18.65 |
Fits: 1991-1994 Ford and Mazda models including Explorer, Ranger, B4000, Navajo - 4.0L and 3.0L engines. Confirm your year, make, model, and engine before ordering.
Interchanges With: APDI 8011164, Visteon 9340, Spectra Premium CU1164, Mazda ZZL4-15-200B, Ford FOTZ 8005 EA
