The Enginetech MKC325BP Master Engine Rebuild Kit is a complete overhaul package for the 2003-2004 Chevy 325 5.3L V8 (325 cid), machined to a 3.810" finished bore (.030" over bore).

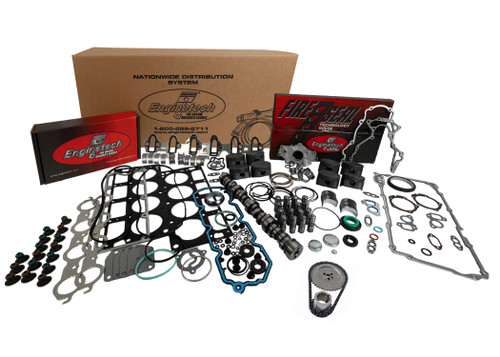

Kit contents:
- P3079(8) - Piston Set
- C96008 - Piston Ring Set
- BB253J - Bearing Set - Rod
- BC409J - Bearing Set - Main
- CC433 - Bearing Set - Cam
- C325HS-B - Gasket Set - Head
- C293CS-A - Gasket Set - Lower
- ES1567 - Camshaft - Stock
- L2281-16 - Valve Lifter
- TS4194A - Timing Set
- EPK152 - Oil Pump
- PK827 - Expansion Plug Kit
Component specifications:
- P3079(8) - Pistons: Dish top. 1.327 Compression Height. Hyper. Coated skirt. Press fit pin
- C96008 - Piston rings: Premium. 1.5 / 1.5 / 3.0mm ring stack
- ES1567 - Camshaft: .402"/.410" valve lift, 192/190 duration @ .050", 117/110 lobe centers, hydraulic
- EPK152 - Oil Pump: rotary-type, cast aluminum housing, standard volume / standard pressure
Bearing sizing: Select your rod and main bearing size. Rod and main bearings are supplied at the same size; contact us for different or split sizes.
Fits 2003-2004 5.3L 325 V8 engines for Cadillac Escalade, Chevy Trailblazer EXT, Chevy Avalanche 1500, Chevy Express 1500, Chevy Express 2500, Chevy SSR, Chevy Silverado 1500, Chevy Suburban 1500, and more. Verify fitment for your specific vehicle.
