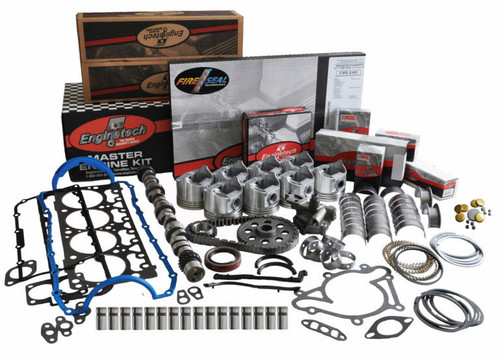

The Enginetech MKIS5.3CP Master Engine Rebuild Kit is a complete overhaul package for the 2004-2004 Isuzu 5.3L V8 (325 cid), machined to a 3.820" finished bore (.040" over bore).

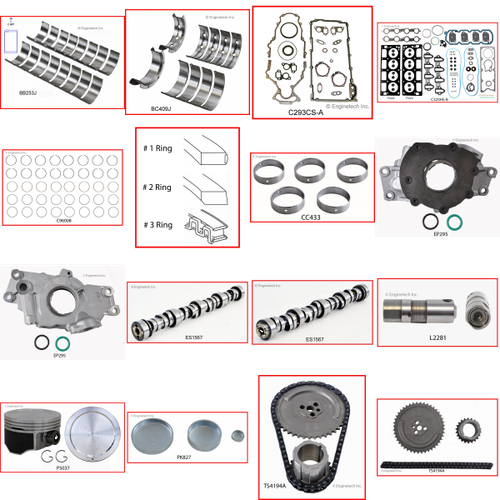

Kit contents:
- P5037(8) - Piston Set
- C96008 - Piston Ring Set
- BB253J - Bearing Set - Rod
- BC409J - Bearing Set - Main
- CC433 - Bearing Set - Cam
- C325HS-B - Gasket Set - Head
- C293CS-A - Gasket Set - Lower
- ES1567 - Camshaft - Stock
- L2281-16 - Valve Lifter
- TS4194A - Timing Set
- EP295 - Oil Pump
- PK827 - Expansion Plug Kit
Component specifications:
- P5037(8) - Pistons: Dish top. 1.323 Compression Height. Hyper. Coated skirt. Floating pin
- C96008 - Piston rings: Premium. 1.5 / 1.5 / 3.0mm ring stack
- ES1567 - Camshaft: .402"/.410" valve lift, 192/190 duration @ .050", 117/110 lobe centers, hydraulic
- EP295 - Oil Pump: rotary-type, cast aluminum housing, standard volume / standard pressure
Bearing sizing: Select your rod and main bearing size. Rod and main bearings are supplied at the same size; contact us for different or split sizes.
Fits 2004-2004 5.3L 325 V8 engines for Isuzu Ascender, and more. Verify fitment for your specific vehicle.
