The Enginetech RCC305BP Engine Rebuild Kit is a complete overhaul package for the 1996-2002 Chevy 305 5.0L V8 (305 cid), machined to a 3.765" finished bore (.030" over bore).

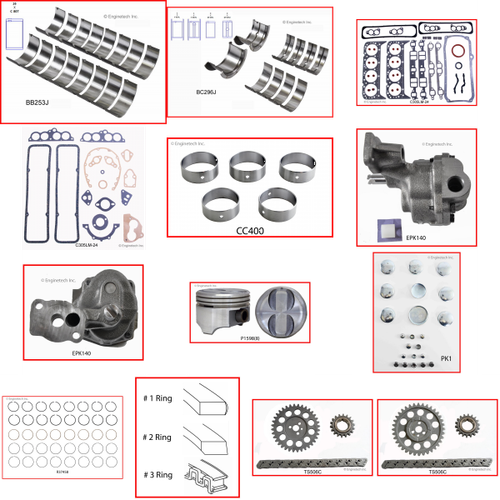

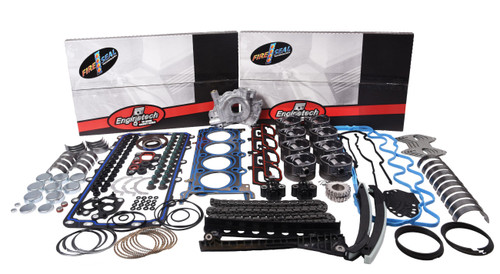

Kit contents:
- P3042(8) - Piston Set
- M37468 - Piston Ring Set
- BB253J - Bearing Set - Rod
- BC296J - Bearing Set - Main
- CC400 - Bearing Set - Cam
- C5.0-A - Gasket Set - Full
- TS506C - Timing Set
- EPK143 - Oil Pump
- PK1 - Expansion Plug Kit
Component specifications:
- P3042(8) - Pistons: Dish top .040 deep. 1.540 Compression Height. Shallow oil ring
- M37468 - Piston rings: Premium. Ductile top. 5/64 5/64 3/16. Shallow oil ring ring stack
- EPK143 - Oil Pump: gear-type, cast iron housing, standard volume / standard pressure, 2-bolt mount
Bearing sizing: Select your rod and main bearing size. Rod and main bearings are supplied at the same size; contact us for different or split sizes.
Fits 1996-2002 5.0L 305 V8 engines for Chevy Express 2500, Chevy Express 1500, GMC Savana 2500, GMC Savana 1500, Chevy C1500, Chevy C2500, Chevy K1500, GMC C1500, and more. Verify fitment for your specific vehicle.
