The Enginetech RCC305F Engine Rebuild Kit is a complete overhaul package for the 1986-1986 Chevy 305 5.0L V8 (305 cid), machined to a 3.775" finished bore (.040" over bore).

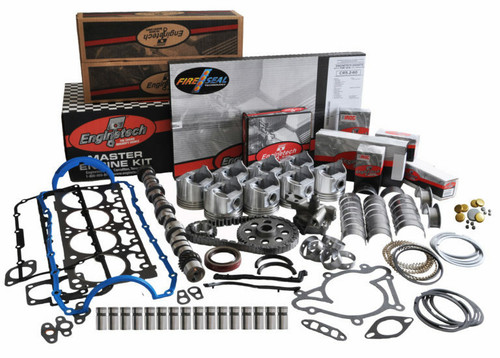

Kit contents:
- P1503(8) - Piston Set
- R37458 - Piston Ring Set
- BB253J - Bearing Set - Rod
- BC296J - Bearing Set - Main
- CC400 - Bearing Set - Cam
- C305LM-24 - Gasket Set - Full
- TS499 - Timing Set
- EPK140 - Oil Pump
- PK1 - Expansion Plug Kit
Component specifications:
- P1503(8) - Pistons: Dish top .110 deep. 1.540 Compression Height
- R37458 - Piston rings: Cast. 5/16 5/16 3/16 ring stack
- EPK140 - Oil Pump: gear-type (spur gear), cast iron housing, standard volume / standard pressure, 4-bolt mount
Bearing sizing: Select your rod and main bearing size. Rod and main bearings are supplied at the same size; contact us for different or split sizes.
Fits 1986-1986 5.0L 305 V8 engines for Chevy C10, Chevy C10 Suburban, Chevy C20, Chevy C20 Suburban, Chevy El Camino, Chevy G10, Chevy G20, Chevy K10, and more. Verify fitment for your specific vehicle.
