The Enginetech RCC325RP Engine Rebuild Kit is a complete overhaul package for the 2004-2004 Isuzu 325 5.3L V8 (325 cid), built with a 3.780" standard bore.

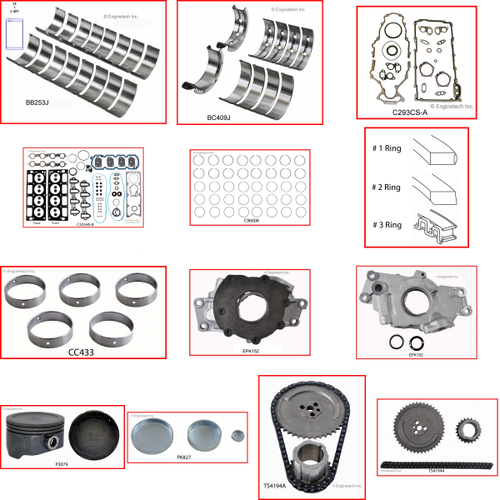

Kit contents:
- P5037(8) - Piston Set
- C96008 - Piston Ring Set
- BB253J - Bearing Set - Rod
- BC409J - Bearing Set - Main
- CC433 - Bearing Set - Cam
- C325HS-B - Gasket Set - Head
- C293CS-A - Gasket Set - Lower
- TS4194A - Timing Set
- EPK152 - Oil Pump
- PK827 - Expansion Plug Kit
Component specifications:
- P5037(8) - Pistons: Dish top. 1.323 Compression Height. Hyper. Coated skirt. Floating pin
- C96008 - Piston rings: Premium. 1.5 / 1.5 / 3.0mm ring stack
- EPK152 - Oil Pump: rotary-type, cast aluminum housing, standard volume / standard pressure
Bearing sizing: Select your rod and main bearing size. Rod and main bearings are supplied at the same size; contact us for different or split sizes.
Fits 2004-2004 5.3L 325 V8 engines for Isuzu Ascender, and more. Verify fitment for your specific vehicle.
