Enginetech C85004-.50 is a premium .50mm oversize piston ring set for 1990-1997 Honda, Acura, Isuzu 2.2L I4 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .50mm oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Steel top. 1.2 / 1.2 / 2.8mm.
- Premium. Steel top. 1.2mm / 1.2mm / 2.8mm.
| Part Number | C85004-.50 |
| Grade | Premium |
| Bore Size | .50mm Oversize |
| Ring Stack (Top/2nd/Oil) | 1.20 / 1.20 / 2.80 |
| Standard Bore Diameter | 3.346 in |
| Quantity | Complete set - covers all 4 cylinders |
| Engine | 2.2L I4 |
| Year Range | 1990-1997 |
| Makes | Acura, Honda, Isuzu |
| Country of Origin | US |
| OEM Cross-Refs | Beck/Arnley:013-8243, Hastings:2C4654, FEL-PRO:E-556KC, Perfect Circle:41619, Topline:RSH20 |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.

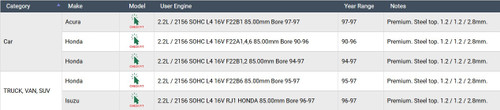

Fitment:
- 1990-1991 Honda Accord 2.2L I4
- 1990-1993 Honda Accord 2.2L I4
- 1991-1993 Honda Accord 2.2L I4
- 1992-1996 Honda Prelude 2.2L I4
- 1994-1997 Honda Accord 2.2L I4
- 1995-1997 Honda Odyssey 2.2L I4
- 1996-1997 Isuzu Oasis 2.2L I4
- 1997-1997 Acura CL 2.2L I4
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
