Enginetech M10228-030 is a premium .030" oversize piston ring set for 1990-2001 Chevy, GMC, Buick, Pontiac 5.7L 350ci V8 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .030 inch oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. 2.0 / 1.5 / 4.0mm. FOR USE WITH P3014(8) PISTON ONLY.
- Premium. 2.0 / 1.5 / 4.0mm. Fits short light weight pistons.
| Part Number | M10228-030 |
| Grade | Premium |
| Bore Size | .030" Oversize |

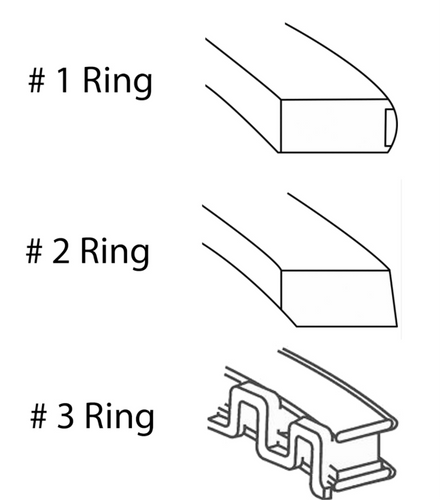

| Ring Stack (Top/2nd/Oil) | 2.00 / 1.50 / 4.00 |
| Standard Bore Diameter | 4.000 in |
| Quantity | Complete set - covers all 8 cylinders |
| Engine | 5.7L 350ci V8 |
| Year Range | 1990-2001 |
| Makes | Buick, Cadillac, Chevrolet, GMC, Pontiac |
| Country of Origin | US |
| OEM Cross-Refs | Hastings:2M4626, FEL-PRO:E-530K, Perfect Circle:41616 |

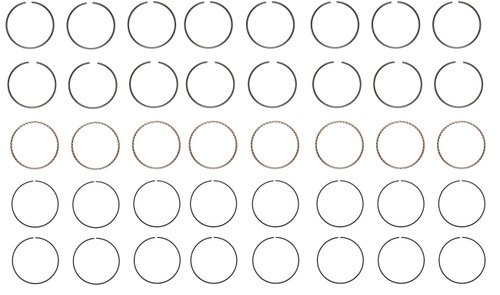

Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 1990-1991 Chevrolet Corvette 5.7L 350ci V8
- 1990-1992 Chevrolet Camaro 5.7L 350ci V8
- 1990-1993 Chevrolet Caprice 5.7L 350ci V8
- 1990-1997 Pontiac Firebird 5.7L 350ci V8
- 1992-1996 Chevrolet Corvette 5.7L 350ci V8
- 1993-1997 Chevrolet Camaro 5.7L 350ci V8
- 1994-1994 Chevrolet Commercial Chassis 5.7L 350ci V8
- 1994-1996 Buick Commercial Chassis 5.7L 350ci V8
- 1994-1996 Buick Roadmaster 5.7L 350ci V8
- 1994-1996 Cadillac Commercial Chassis 5.7L 350ci V8
- 1994-1996 Cadillac Fleetwood 5.7L 350ci V8
- 1994-1996 Chevrolet Caprice 5.7L 350ci V8
- 1994-1996 Chevrolet Impala 5.7L 350ci V8
- 1996-1996 Chevrolet G30 5.7L 350ci V8
- 1996-1996 GMC G3500 5.7L 350ci V8
- 1996-1999 Chevrolet C1500 5.7L 350ci V8
- 1996-1999 Chevrolet C1500 Suburban 5.7L 350ci V8
- 1996-1999 Chevrolet C2500 Suburban 5.7L 350ci V8
- 1996-1999 Chevrolet K1500 5.7L 350ci V8
- 1996-1999 Chevrolet K1500 Suburban 5.7L 350ci V8
- 1996-1999 Chevrolet K2500 Suburban 5.7L 350ci V8
- 1996-1999 GMC C1500 5.7L 350ci V8
- 1996-1999 GMC C2500 Suburban 5.7L 350ci V8
- 1996-1999 GMC K1500 5.7L 350ci V8
- 1996-1999 GMC K1500 Suburban 5.7L 350ci V8
- 1996-1999 GMC K2500 Suburban 5.7L 350ci V8
- 1996-1999 GMC P3500 5.7L 350ci V8
- 1996-2000 Chevrolet C2500 5.7L 350ci V8
- 1996-2000 Chevrolet C3500 5.7L 350ci V8
- 1996-2000 Chevrolet K2500 5.7L 350ci V8
- ...and 15 additional applications
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
