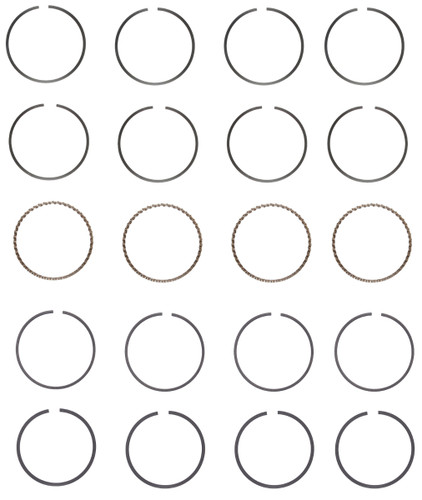

Enginetech M91146-STD is a premium standard bore piston ring set for 1987-1998 Dodge, Chrysler, Plymouth, Hyundai 3.0L 181ci V6 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for standard (unmachined) cylinder bores. Verify your finished bore diameter with a precision gauge before ordering.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Thru 11/92. Premium. Ductile top. 1.5 / 1.5 / 4.0mm.
- Thru 11/92. Premium. Ductile top. 1.5mm / 1.5mm / 4.0mm.
| Part Number | M91146-STD |
| Grade | Premium |
| Bore Size | Standard |

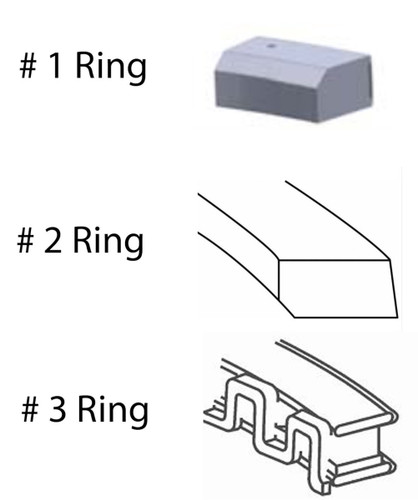

| Ring Stack (Top/2nd/Oil) | 1.50 / 1.50 / 4.00 |
| Standard Bore Diameter | 3.587 in |
| Quantity | Complete set - covers all 6 cylinders |
| Engine | 3.0L 181ci V6 |
| Year Range | 1987-1998 |
| Makes | Chrysler, Dodge, Hyundai, Mitsubishi, Plymouth |
| Country of Origin | US |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 1987-1988 Dodge Mini Ram 3.0L 181ci V6
- 1987-1989 Dodge Grand Caravan 3.0L 181ci V6
- 1992-1993 Dodge Grand Caravan 3.0L 181ci V6
- 1987-1989 Plymouth Grand Voyager 3.0L 181ci V6
- 1992-1993 Plymouth Grand Voyager 3.0L 181ci V6
- 1987-1993 Dodge Caravan 3.0L 181ci V6
- 1987-1993 Plymouth Voyager 3.0L 181ci V6
- 1988-1988 Mitsubishi Galant 3.0L 181ci V6
- 1988-1989 Chrysler New Yorker 3.0L 181ci V6
- 1988-1992 Dodge Dynasty 3.0L 181ci V6
- 1989-1990 Mitsubishi Sigma 3.0L 181ci V6
- 1989-1992 Dodge Spirit 3.0L 181ci V6
- 1989-1992 Mitsubishi Montero 3.0L 181ci V6
- 1989-1992 Plymouth Acclaim 3.0L 181ci V6
- 1990-1991 Chrysler TC Maserati 3.0L 181ci V6
- 1990-1992 Chrysler LeBaron 3.0L 181ci V6
- 1990-1992 Dodge Daytona 3.0L 181ci V6
- 1990-1992 Mitsubishi Mighty Max 3.0L 181ci V6
- 1990-1998 Hyundai Sonata 3.0L V6
- 1992-1992 Dodge Shadow 3.0L 181ci V6
- 1992-1992 Dodge Stealth 3.0L 181ci V6
- 1993-1993 Mitsubishi Mighty Max 3.0L 181ci V6
- 1993-1993 Mitsubishi Montero 3.0L 181ci V6
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
