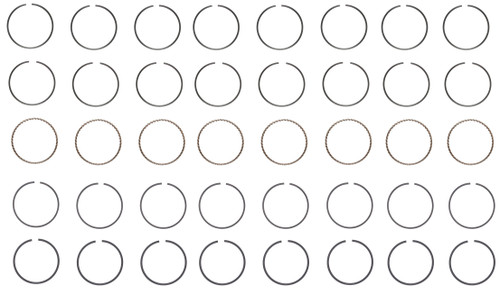

Enginetech M92138-.50 is a premium .50mm oversize piston ring set for 1988-1995 Cadillac 4.5L/4.9L 273-300ci V8 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .50mm oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Ductile top. 1.5 / 1.5 / 3.0mm.
| Part Number | M92138-.50 |
| Grade | Premium |
| Bore Size | .50mm Oversize |

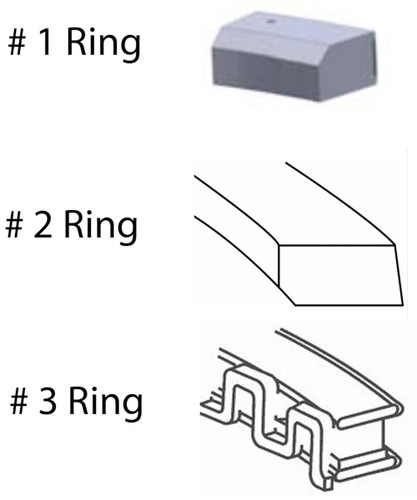

| Ring Stack (Top/2nd/Oil) | 1.50 / 1.50 / 3.00 |
| Standard Bore Diameter | 3.622 in |
| Quantity | Complete set - covers all 8 cylinders |
| Engine | 4.5L/4.9L 273-300ci V8 |
| Year Range | 1988-1995 |
| Makes | Cadillac |
| Country of Origin | US |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 1988-1989 Cadillac Commercial Chassis 4.5L 273ci V8
- 1988-1989 Cadillac DeVille 4.5L 273ci V8
- 1988-1989 Cadillac Eldorado 4.5L 273ci V8
- 1988-1989 Cadillac Fleetwood 4.5L 273ci V8
- 1988-1989 Cadillac Seville 4.5L 273ci V8
- 1989-1992 Cadillac Allante 4.5L 273ci V8
- 1990-1990 Cadillac Commercial Chassis 4.5L 273ci V8
- 1990-1990 Cadillac DeVille 4.5L 273ci V8
- 1990-1990 Cadillac Eldorado 4.5L 273ci V8
- 1990-1990 Cadillac Fleetwood 4.5L 273ci V8
- 1990-1990 Cadillac Seville 4.5L 273ci V8
- 1991-1992 Cadillac Fleetwood 4.9L 300ci V8
- 1991-1993 Cadillac Commercial Chassis 4.9L 300ci V8
- 1991-1993 Cadillac Eldorado 4.9L 300ci V8
- 1991-1993 Cadillac Seville 4.9L 300ci V8
- 1991-1995 Cadillac DeVille 4.9L 300ci V8
- 1993-1993 Cadillac 60 Special 4.9L 300ci V8
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
