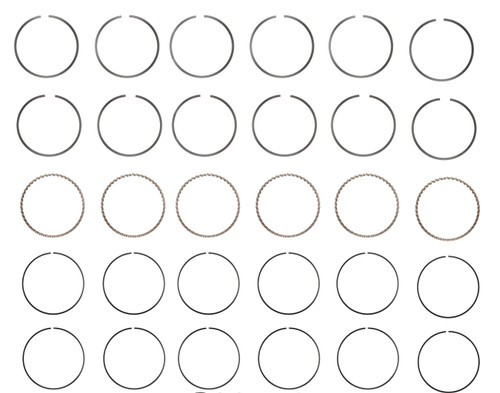

Enginetech S39116-020 is a premium .020" oversize piston ring set for 1992-2003 Dodge 3.9L 239ci V6 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .020 inch oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Steel or Moly top. 2.0 / 2.0 / 4.0mm. Shallow oil ring.
| Part Number | S39116-020 |
| Grade | Premium |
| Bore Size | .020" Oversize |

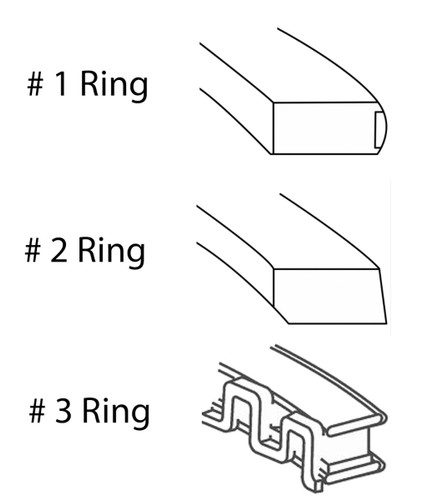

| Ring Stack (Top/2nd/Oil) | 2.00 / 2.00 / 4.00 |
| Standard Bore Diameter | 3.910 in |
| Quantity | Complete set - covers all 6 cylinders |
| Engine | 3.9L 239ci V6 |
| Year Range | 1992-2003 |
| Makes | Dodge |
| Country of Origin | US |
| OEM Cross-Refs | Hastings:2M4760, FEL-PRO:E-641K, Perfect Circle:41708 |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 1992-1993 Dodge D150 3.9L 239ci V6
- 1992-1993 Dodge D250 3.9L 239ci V6
- 1992-1993 Dodge W150 3.9L 239ci V6
- 1992-1994 Dodge B150 3.9L 239ci V6
- 1992-1994 Dodge B250 3.9L 239ci V6
- 1992-2003 Dodge Dakota 3.9L 239ci V6
- 1994-2001 Dodge Ram 1500 3.9L 239ci V6
- 1995-1997 Dodge B2500 3.9L 239ci V6
- 1995-1998 Dodge B1500 3.9L 239ci V6
- 1998-1999 Dodge Durango 3.9L 239ci V6
- 1999-2003 Dodge Ram 1500 Van 3.9L 239ci V6
- 2001-2001 Dodge Ram 2500 Van 3.9L 239ci V6
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
