Enginetech S88134-.50 is a premium .50mm oversize piston ring set for 2007-2016 Chevy, GMC, Buick, Pontiac 2.4L 145ci I4 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .50mm oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Steel top. 1.2 / 1.5 / 2.0mm.
- Premium. Steel top. 1.2mm / 1.5mm / 2.0mm.
- Premium. Steel top. Engines w/ 1.2 / 1.5 / 2.0mm wide rings.
- Premium. Steel top. Engines with 1.2mm / 1.5mm / 2.0mm rings.
- Premium. Steel top. Engines with 1.2mm / 1.5mm / 2.0mmmm rings.
| Part Number | S88134-.50 |
| Grade | Premium |
| Bore Size | .50mm Oversize |

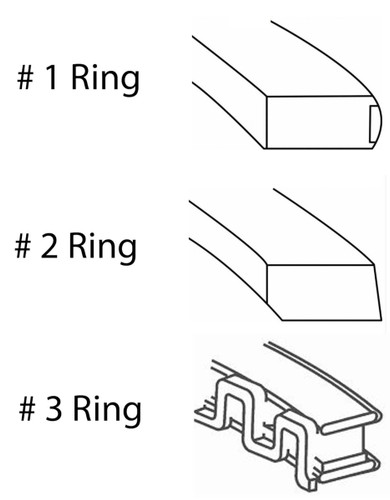

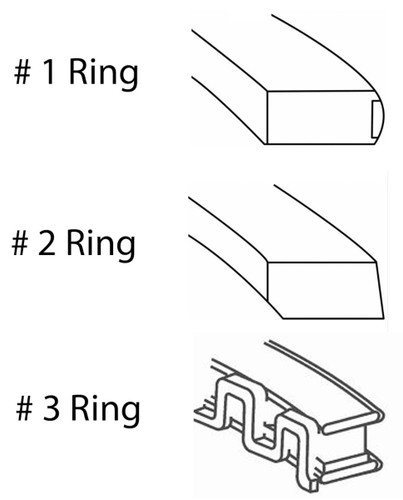

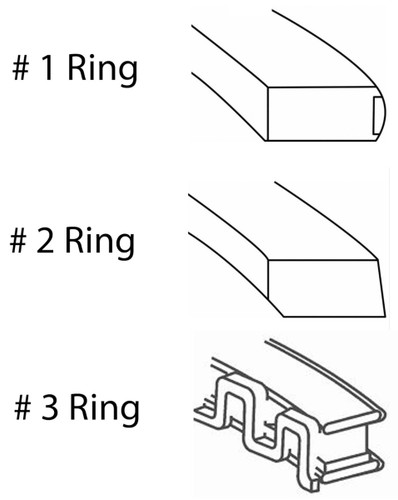

| Ring Stack (Top/2nd/Oil) | 1.20 / 1.50 / 2.00 |
| Standard Bore Diameter | 3.465 in |
| Quantity | Complete set - covers all 4 cylinders |
| Engine | 2.4L 145ci I4 |
| Year Range | 2007-2016 |
| Makes | Buick, Chevrolet, GMC, Pontiac, Saturn |
| Country of Origin | US |
| OEM Cross-Refs | Hastings:2C4564, Perfect Circle:42101CP |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.

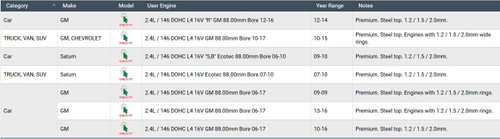

Fitment:
- 2007-2007 Saturn Vue 2.4L 145ci I4
- 2008-2009 Saturn Vue 2.4L 145ci I4
- 2009-2009 Pontiac Solstice 2.4L 145ci I4
- 2009-2010 Chevrolet Malibu 2.4L 145ci I4
- 2009-2010 Pontiac G6 2.4L 145ci I4
- 2009-2010 Saturn Sky 2.4L 145ci I4
- 2010-2010 Chevrolet Equinox 2.4L 145ci I4
- 2010-2010 Chevrolet HHR 2.4L 145ci I4
- 2010-2010 GMC Terrain 2.4L 145ci I4
- 2010-2010 Pontiac G6 2.4L 145ci I4
- 2010-2010 Saturn Vue 2.4L 145ci I4
- 2010-2011 Buick LaCrosse 2.4L 145ci I4
- 2011-2011 Buick Regal 2.4L 145ci I4
- 2011-2011 Chevrolet Equinox 2.4L 145ci I4
- 2011-2011 Chevrolet HHR 2.4L 145ci I4
- 2011-2011 GMC Terrain 2.4L 145ci I4
- 2011-2012 Chevrolet Malibu 2.4L 145ci I4
- 2012-2012 Chevrolet Malibu 2.4L 145ci I4
- 2012-2012 Buick Regal 2.4L 145ci I4
- 2015-2016 Buick Regal 2.4L 145ci I4
- 2012-2014 Buick LaCrosse 2.4L 145ci I4
- 2012-2014 Buick Regal 2.4L 145ci I4
- 2012-2015 Chevrolet Captiva Sport 2.4L 145ci I4
- 2012-2015 Chevrolet Equinox 2.4L 145ci I4
- 2012-2015 GMC Terrain 2.4L 145ci I4
- 2012-2016 Buick Regal 2.4L 145ci I4
- 2013-2014 Chevrolet Malibu 2.4L 145ci I4
- 2013-2016 Buick LaCrosse 2.4L 145ci I4
- 2014-2014 Chevrolet Impala 2.4L 145ci I4
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
