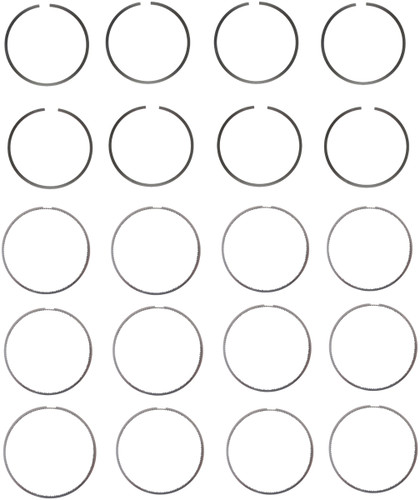

Enginetech S88544-.50 is a premium .50mm oversize piston ring set for 2006-2015 Toyota, Pontiac, Lexus, Scion 2.4L I4 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .50mm oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Steel top. 1.0 / 1.0 / 2.0mm.
- Premium. Steel top. 1.0mm / 1.0mm / 2.0mm.
| Part Number | S88544-.50 |
| Grade | Premium |
| Bore Size | .50mm Oversize |

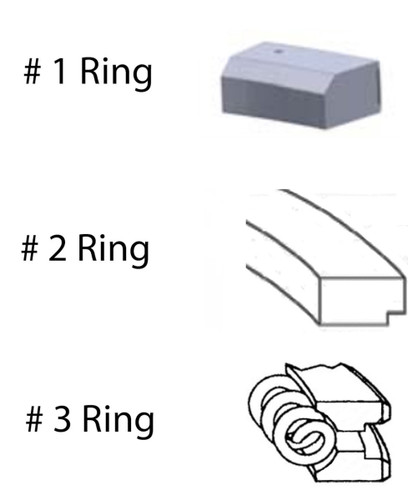

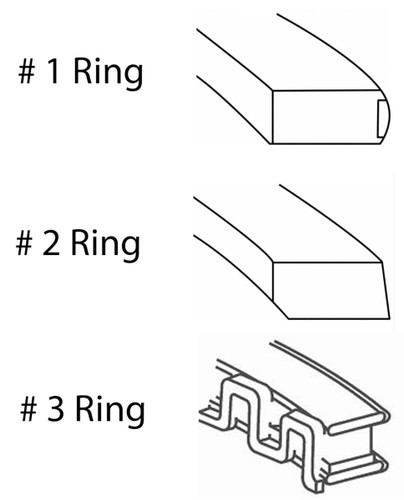

| Ring Stack (Top/2nd/Oil) | 1.00 / 1.00 / 2.00 |
| Standard Bore Diameter | 3.484 in |
| Quantity | Complete set - covers all 4 cylinders |
| Engine | 2.4L I4 |
| Year Range | 2006-2015 |
| Makes | Lexus, Pontiac, Scion, Toyota |
| Country of Origin | US |
| OEM Cross-Refs | Hastings:2C5267, Topline:RSTO44L, Safety Auto Parts Corp:RG15-116, DNJ:PR932 |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 2006-2008 Toyota RAV4 2.4L I4
- 2007-2008 Toyota Solara 2.4L I4
- 2007-2009 Toyota Camry 2.4L I4
- 2007-2010 Scion tC 2.4L I4
- 2007-2011 Toyota Camry 2.4L I4
- 2008-2015 Scion xB 2.4L I4
- 2009-2010 Pontiac Vibe 2.4L I4
- 2009-2010 Toyota Corolla 2.4L I4
- 2009-2013 Toyota Matrix 2.4L I4
- 2010-2012 Lexus HS250h 2.4L I4
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
