Enginetech S94112-STD is a premium standard bore piston ring set for 2004-2016 Chevy, GMC, Buick, Pontiac 3.5L/3.6L 213-217ci V6 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for standard (unmachined) cylinder bores. Verify your finished bore diameter with a precision gauge before ordering.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. Steel top. 1.2 / 1.5 / 2.5mm. Fits shallow groove piston.
- Premium. Steel top. 1.2mm / 1.5mm / 2.5mm.
| Part Number | S94112-STD |
| Grade | Premium |
| Bore Size | Standard |

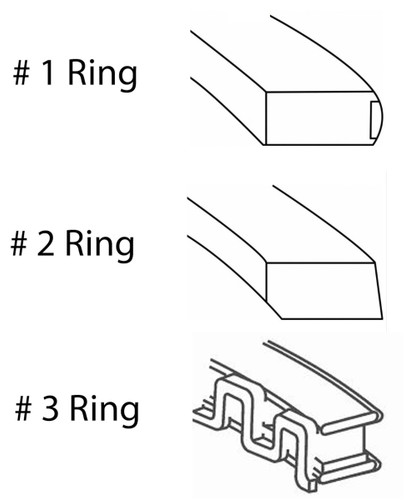

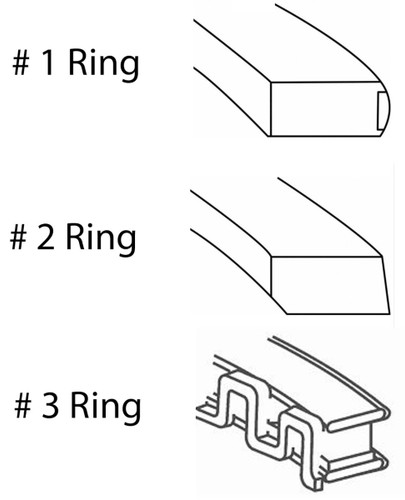

| Ring Stack (Top/2nd/Oil) | 1.20 / 1.50 / 2.50 |
| Standard Bore Diameter | 3.701 in |
| Quantity | Complete set - covers all 6 cylinders |
| Engine | 3.5L/3.6L 213-217ci V6 |
| Year Range | 2004-2016 |
| Makes | Buick, Cadillac, Chevrolet, GMC, Pontiac, Saturn, Suzuki |
| Country of Origin | US |
| OEM Cross-Refs | Hastings:2C5133, Perfect Circle:42075CP |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 2004-2006 Buick Rendezvous 3.6L 217ci V6
- 2004-2006 Chevrolet Malibu 3.5L 213ci V6
- 2004-2008 Cadillac CTS 3.6L 217ci V6
- 2004-2009 Cadillac SRX 3.6L 217ci V6
- 2005-2006 Buick Terraza 3.5L 213ci V6
- 2005-2006 Chevrolet Uplander 3.5L 213ci V6
- 2005-2006 Pontiac Montana 3.5L 213ci V6
- 2005-2006 Saturn Relay 3.5L 213ci V6
- 2005-2008 Buick LaCrosse 3.6L 217ci V6
- 2006-2007 Buick Rendezvous 3.5L 213ci V6
- 2007-2009 Pontiac G6 3.6L 217ci V6
- 2007-2009 Saturn Aura 3.6L 217ci V6
- 2007-2009 Suzuki XL-7 3.6L V6
- 2008-2009 Chevrolet Equinox 3.6L 217ci V6
- 2008-2009 Pontiac G8 3.6L 217ci V6
- 2008-2009 Pontiac Torrent 3.6L 217ci V6
- 2008-2010 Cadillac STS 3.6L 217ci V6
- 2008-2010 Saturn Vue 3.6L 217ci V6
- 2009-2010 Saturn Outlook 3.6L 217ci V6
- 2010-2010 Buick LaCrosse 3.6L 217ci V6
- 2011-2011 Buick LaCrosse 3.6L 217ci V6
- 2011-2011 Cadillac STS 3.6L 217ci V6
- 2012-2012 Buick LaCrosse 3.6L 217ci V6
- 2012-2016 Cadillac SRX Base 3.6L 217ci V6
- 2015-2016 Chevrolet Colorado 3.6L 217ci V6
- 2015-2016 GMC Canyon 3.6L 217ci V6
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
