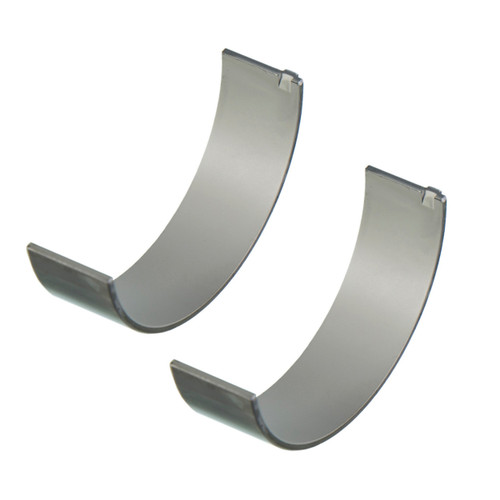

The Sealed Power Engine Connecting Rod Bearing Pair - 0.25 mm Undersize (part number 5020P .25MM) is a direct-fit replacement for 2003-2010 Ford vehicles with 6.0L engines. Sealed Power 5020P .25MM Engine Connecting Rod Bearing for Ford F-250 Super Duty
Features:
- Steel-backed bronze alloy lining with overplate
- Popular for fatigue resistance & strength
- Provides conformability required for older apps
- Our standard material is comparable to competitors performance bearing
- Note - This material offers less resistance to wear & corrosion than other materials.
- Utilizes ISO & QS certified manufacturing
Specifications:
| Product Grade | Premium |
| Design Feature 1 | Undersize MM .25 |
| Housing Bore Max (Inch) | 2.8764 |
| Housing Bore Max (MM) | 73.0610 |
| Housing Bore Min (Inch) | 2.8755 |
| Housing Bore Min (MM) | 73.0380 |
| Oil Clearance Max (Inch) | 0.0035 |
| Oil Clearance Max (MM) | 0.0890 |
| Oil Clearance Min (Inch) | 0.0006 |
| Oil Clearance Min (MM) | 0.0150 |
| Overall Length Max (Inch) | 0.8310 |
| Overall Length Max (MM) | 21.1100 |
| Part Description | Engine Connecting Rod Bearing |
| Standard Shaft Max (Inch) | 2.7170 |
Fits: 2003-2010 Ford models including E-350 Super Duty, E-450 Super Duty, F-250 Super Duty, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, Excursion, E-350 Club Wagon - 6.0L engines. Confirm your year, make, model, and engine before ordering.
Interchanges With: Clevite CB1814P25MM, International Harvester IHC 7085757C91
