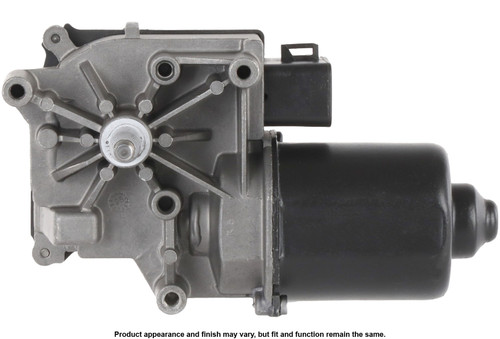

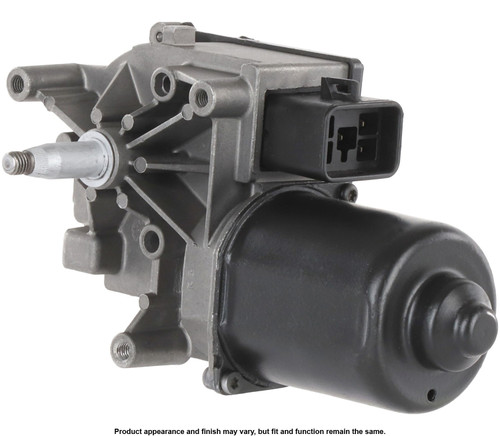

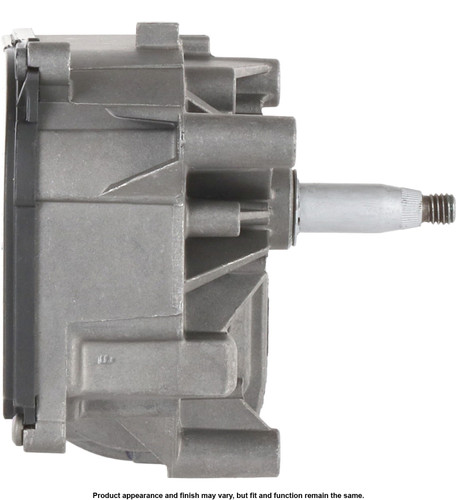

The Cardone Reman Windshield Wiper Motor (part number 40-1003) is a direct-fit replacement built to match the original equipment part.
Features:
- Each unit has its main components tested or gauged against the O.E. standard. [Armature, Field, Bearing, Parking switch, or pulse board] - Then the final product is tested for each of its functions on the vehicle.
- Every motor bearing is re-impregnated or replaced as needed.
- Lubrication is applied to the output gear to provide maximum load capacity and long life.
- Weak solder points are 100% reflowed to extend life expectancy.
- Motor magnets are 100% recharged for performance and reliability.
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Specifications:
| Number of Terminals | 5 |
| Connector Type | Blade |
| Connector Gender | Male |
| Terminal Gender | Female |
| Mounting Style | Direct Bolt |
| Product Condition | Remanufactured |
| E-Waste | Yes |
| FAQ_Q1 | The wiper motor continues to stop in the middle of the windshield. What's causing this to happen? |
| FAA_A1 | If the motor does not have hidden wiper blades, the most likely cause of parking misalignment is the crank arm position. Adjust the crank arm angle on the motor shaft to park wipers at bottom of windshield. Refer to a vehicle specific service manual or online material for the "hidden park" reset procedure. |
| FAQ_Q2 | I just installed a new wiper motor and put my old washer pump on and the motor does not work. Is the motor defective? |
| FAA_A2 | The motor is NOT defective. There are some wiper motors that will not operate if the washer pump is defective. This may be the cause of the original motor problem. Bench test wiper motor and washer pump before replacing either. |
| FAQ_Q3 | Why won't the wiper motor work? I have everything hooked up properly. |
| FAA_A3 | Check the wiring harness ground, terminal ground lug or ground strap. If the motor still does not operate properly, check the switch and switch circuit. |
| FAQ_Q4 | How can I determine if my vehicle is equipped with a moisture sensitive wiper motor? |
Interchanges With: Chevrolet 12368704 , GMC 12368704 , Chevrolet 12494840 , GMC 12494840 , Chevrolet 15746784 , GMC 15746784 , Chevrolet 22121186 , GMC 22121186
