The Holley EFI 6.86" Standalone Pro Dash (part number 553-117). 6.86" Standalone Pro Dash
Features:
- Standalone digital dashes for installation in most any vehicle - no ECU or fuel injection required. As easy to install as traditional gauges!
- Two models available:
- 6.86" version is big on features, but small on size for installation almost anywhere!
- 12.3" version is for the hard-core enthusiast who wants the ultimate display device!
- Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips - day or night - no stylus needed
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- 16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts
- Built-in GPS with speed, odometer and trip odometer function (external antenna included)
- Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86" dash only)
- Rendered analog (dials/ needles) and digital gauge styles available
- Integrated datalogger
- Rugged, water resistant case is constructed of cast aluminum for long life and durability
- Plug and play features are pre-configured in the harness and include dash layouts/ screens for::
- Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)
- Turn signals
- High beam
- Fuel level
- Engine vacuum/ boost
- Additional input and output functionality:
- 13 multi-configurable inputs
- 4 ground switched outputs
- Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
- User definable channel alarms and warnings
- Communications/ Harness:
- 4 Pin Wiring Harness contains Power, Ground and CANbus connections
- Holley EFI CANbus connection for expanded capability with Holley EFI systems
- Expandable storage via USB
- Integrated Datalogger:
- Internal Log Memory - 1 GB (expandable up to 32GB with addition of micro-SD card)
- External Logging to USB Flash Drive is also available for easy file management
- On-screen datalog playback allows you to review vital run information right on the dash
- Full analysis via laptop is available. Simply download the file to a USB drive and view with the free datalog viewer at
- Flexible mounting options: Surface or flush mounting, with high quality hardware included
- Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
- Fully Upgradeable:
- Upgradable with future software enhancements
- Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost
- What's Included:

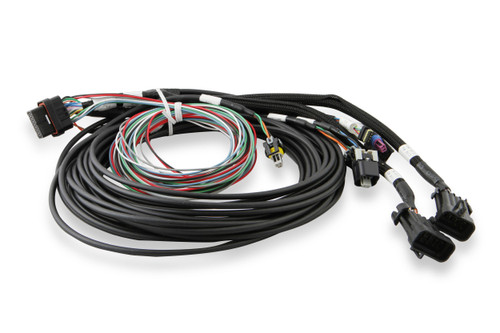

- Both dash versions include harness/ cables, mounting hardware, USB memory stick and CAN terminator
- GPS Antenna
- Sensors not included
Specifications:
| Connector Gender | Female |
| Fit Type | Universal |
| Product Grade | Performance |
| Application | Standalone |
| Depth | 1.25" |
| Height | 3.4375 |
| Maximum Gauge Diameter | Programmable |
| Minimum Gauge Diameter | Programmable |
| Screen Size | 6.86" |
| Screen Type | Capacitive Touch Screen |
| Width | 7.5625 |
