Enginetech S86654-.50 is a premium .50mm oversize piston ring set for 1998-2008 Chevy, Daewoo, Isuzu, Suzuki 2.0L/2.2L 122-134ci I4 engines, sold as a complete set covering all cylinders.
Important Notes:
- Sized for cylinders bored .50mm oversize. Verify your finished bore diameter with a precision gauge before ordering - rings sized for the wrong bore will not seal correctly.
- File-fit and gap each ring to the manufacturer's end-gap specification for your application before installation. Improper end gap causes blow-by or ring-end butting under heat.
- Replace piston rings as a complete set during any rebuild. One set covers all cylinders for the engine.
- Premium. For engines w/ 1.5 / 1.5 / 3.0mm rings.
- Premium. Steel top. For engines w/ 1.5 / 1.5 / 3.0mm rings.
- Thru 07/00. Premium. Steel top. 1.5 / 1.5 / 3.0mm.
- Thru 07/00. Premium. Steel top. 1.5mm / 1.5mm / 3.0mm.
| Part Number | S86654-.50 |
| Grade | Premium |
| Bore Size | .50mm Oversize |

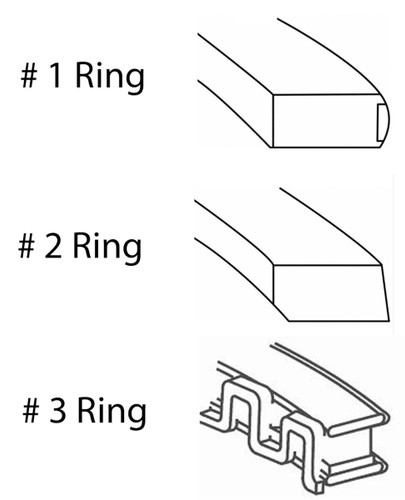

| Ring Stack (Top/2nd/Oil) | 1.50 / 1.50 / 3.00 |
| Standard Bore Diameter | 3.386 in |
| Quantity | Complete set - covers all 4 cylinders |
| Engine | 2.0L/2.2L 122-134ci I4 |
| Year Range | 1998-2008 |
| Makes | Chevrolet, Daewoo, Isuzu, Suzuki |
| Country of Origin | US |
| OEM Cross-Refs | Topline:RSIS16, DNJ:PR670 |
Sold as a complete piston ring set - one set covers all cylinders and is required per engine.
Fitment:
- 1998-2000 Isuzu Amigo 2.2L I4
- 1998-2001 Isuzu Rodeo 2.2L I4
- 1999-2002 Daewoo Leganza 2.2L 134ci I4
- 1999-2002 Daewoo Nubira 2.0L 122ci I4
- 2004-2007 Chevrolet Optra 2.0L 122ci I4
- 2004-2008 Suzuki Forenza 2.0L 122ci I4
- 2005-2007 Suzuki Reno 2.0L I4
- 2008-2008 Suzuki Reno 2.0L 122ci I4
Enginetech piston ring sets are manufactured to OEM specifications and offered in both premium and cast grades to match the demands of stock rebuilds and moderate-performance builds. Each set is application-specific, with ring widths and end-gap characteristics matched to the bore and groove geometry of the engine family it serves. Ring sets are sold by bore size - standard for unmachined bores, with oversizes for blocks that have been bored and honed - so verify your finished bore diameter with a precision gauge before ordering, since rings sized for the wrong bore will not seal correctly. Always file-fit and gap each ring to the manufacturer's specification for your application, and replace rings as a complete set during any rebuild. Enginetech documents every set with the ring stack dimensions, bore size, and cross-references so the correct set reaches the bench the first time.
