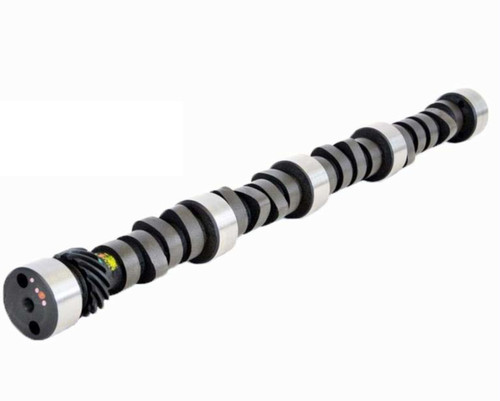

The Enginetech ES774 is a replacement hydraulic engine camshaft for 1970-1994 Chevrolet/GMC 7.4L/6.6L/7.0L engines.
Important Notes
- Follower/lifter type required: Flat
- Except high performance or HD. Use flat followers.
- Except high performance. Use hydraulic flat followers.
- Use flat followers.
- With federal emission override NC7. .050 Duration-193/204; Cam Lift-.234/.253.
Camshaft Specifications
| Part Number | ES774 |
| Camshaft Type | Hydraulic |
| Duration @ .050" Intake | 193 degrees |
| Duration @ .050" Exhaust | 203 degrees |
| Valve Lift Intake | .398" |
| Valve Lift Exhaust | .429" |
| Lobe Lift | .252" |
| Cross-References | Elgin:E-787-S, Melling:CCS-25, FEL-PRO:CS-774, MAHLE:229-2267 |

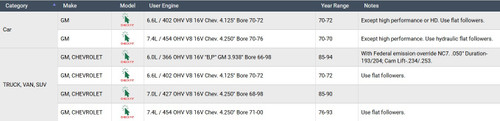

Vehicle Fitment
- 1970 Chevrolet Bel Air 7.4L 454ci V8 OHV
- 1970 Chevrolet Biscayne 7.4L 454ci V8 OHV
- 1970 Chevrolet Brookwood 7.4L 454ci V8 OHV
- 1970 Chevrolet Caprice 7.4L 454ci V8 OHV
- 1970 Chevrolet Chevelle 7.4L 454ci V8 OHV
- 1970 Chevrolet Corvette 7.4L 454ci V8 OHV
- 1970 Chevrolet Estate 6.6L 402ci V8 OHV
- 1970 Chevrolet Estate 7.4L 454ci V8 OHV
- 1970 Chevrolet Impala 7.4L 454ci V8 OHV
- 1970 Chevrolet Kingswood 7.4L 454ci V8 OHV
- 1970 Chevrolet Monte Carlo 7.4L 454ci V8 OHV
- 1970 Chevrolet Nova 6.6L 402ci V8
- 1970 Chevrolet Nova 7.4L 454ci V8 OHV
- 1970 Chevrolet Townsman 7.4L 454ci V8 OHV
- 1970, 1972 Chevrolet Chevelle 6.6L 402ci V8
- 1970-1971 Chevrolet K30 Pickup 6.6L 402ci V8
- 1970-1971 GMC K35/K3500 Pickup 6.6L 402ci V8
- 1970-1972 Chevrolet Bel Air 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Biscayne 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Brookwood 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet C10 Pickup 6.6L 402ci V8
- 1970-1972 Chevrolet C10 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet C10 Suburban 6.6L 402ci V8
- 1970-1972 Chevrolet C10 Suburban 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet C20 Pickup 6.6L 402ci V8
- 1970-1972 Chevrolet C20 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet C20 Suburban 6.6L 402ci V8
- 1970-1972 Chevrolet C20 Suburban 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet C30 Pickup 6.6L 402ci V8
- 1970-1972 Chevrolet C30 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Camaro 6.6L 402ci V8
- 1970-1972 Chevrolet Camaro 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Caprice 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Chevelle 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet El Camino 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Impala 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet K10 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet K10 Suburban 6.6L 402ci V8
- 1970-1972 Chevrolet K10 Suburban 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet K20 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet K20 Suburban 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet K30 Pickup 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Kingswood 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Monte Carlo 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Nova 6.6L 402ci V8 OHV
- 1970-1972 Chevrolet Townsman 6.6L 402ci V8 OHV
- 1970-1972 GMC C15/C1500 Pickup 6.6L 402ci V8
- 1970-1972 GMC C15/C1500 Pickup 6.6L 402ci V8 OHV
- 1970-1972 GMC C15/C1500 Suburban 6.6L 402ci V8
- 1970-1972 GMC C15/C1500 Suburban 6.6L 402ci V8 OHV
- 1970-1972 GMC C25/C2500 Pickup 6.6L 402ci V8
- 1970-1972 GMC C25/C2500 Pickup 6.6L 402ci V8 OHV
- 1970-1972 GMC C25/C2500 Suburban 6.6L 402ci V8
- 1970-1972 GMC C25/C2500 Suburban 6.6L 402ci V8 OHV
- 1970-1972 GMC C35/C3500 Pickup 6.6L 402ci V8
- 1970-1972 GMC C35/C3500 Pickup 6.6L 402ci V8 OHV
- 1970-1972 GMC K15/K1500 Pickup 6.6L 402ci V8 OHV
- 1970-1972 GMC K15/K1500 Suburban 6.6L 402ci V8
- 1970-1972 GMC K15/K1500 Suburban 6.6L 402ci V8 OHV
- 1970-1972 GMC K25/K2500 Pickup 6.6L 402ci V8 OHV
- ...and 116 additional applications
Enginetech replacement camshafts are manufactured to OEM specifications
to restore proper valve timing, lift, and duration to worn or damaged engines. Each
camshaft is ground to original profiles and hardened for durability. Always install a
new timing set and replace all lifters when replacing a camshaft - reusing worn lifters
on a new cam lobe will cause rapid wear and premature failure. Use the specified follower
type (flat or roller) as noted. Enginetech offers complementary components including
timing sets, lifters, and complete engine rebuild kits. Verify part fitment by year,
make, model, and engine displacement before ordering.
