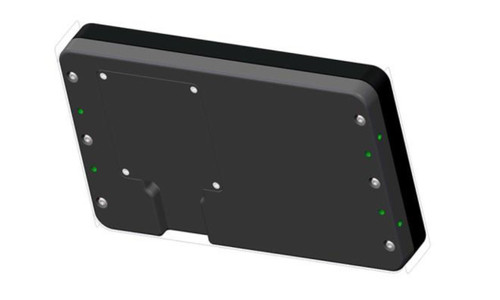

The Holley EFI 7" Digital Dash (part number 553-106). Compatible with Holley EFI, Sniper 1, and Terminator X
Features:
- Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
- Weatherproof aluminum housing allowing flexible mounting options (template included)
- 7" screen with 800 x 480 resolution measuring at 4.625" H x 7.5" W x 1" Depth
- Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
- 10 preconfigured screens you can customize to personal preferences displaying any measurements
- Complete customizable display of all EFI parameters including every user configurable input and output available
- Numerous gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel replacing the need for physical switches in vehicles
- Built in warning lights and alarms to keep you alert for any set parameters
- Progressive shift light and multiconfiguration light bar
- Control and on-screen playback of data logs
- Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card
- Integrated 3 Axis Accelerometer
- Ability to connect to Holley and non-Holley ECU's
Specifications:
| Terminal Gender | Male Female |
| Fit Type | Universal |
| Product Grade | Performance |
| Depth | 1" |
| Height | 4.625" |
| Maximum Gauge Diameter | Programmable |
| Minimum Gauge Diameter | Programmable |
| Screen Size | 7" Diagonal |
| Screen Type | Resistive touch screen |
| Width | 7.5" |
